Quantifying Fruit Dehiscence Using the Random Impact Test (RIT)

Materials and Reagents

1. L. campestre plants

Equipment

1. An open container (e.g. Falcon tube)

2. Desiccator or climate chamber allowing for the control of temperature and relative humidity

3. A number of steel balls (in our case with a diameter of 5 mm)

4. Mixer Mill (MM 400/Retsch) including two grinding jars (Figure 1)

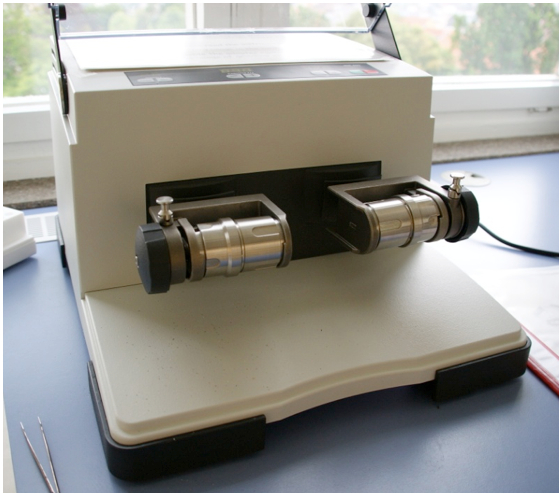

   Figure 1. Mixer Mill (MM400/Retsch)


5. A pair of tweezers


Software

1. Microsoft Excel

Procedure

1. Grow L. campestre plants until fruits are yellow and completely dry.

2. Carefully harvest at least 60 fruits per plant without manually causing fruits to open.

3. Place the fruits in an open container (e.g. Falcon tube) and keep them under constant environmental conditions (25 °C and 50% relative humidity) for at least 3 days to achieve consistent moisture content.

4. Count 20 fruits and place them in a grinding jar of the mixer mill together with six of the 5-mm steel balls (Figure 2).

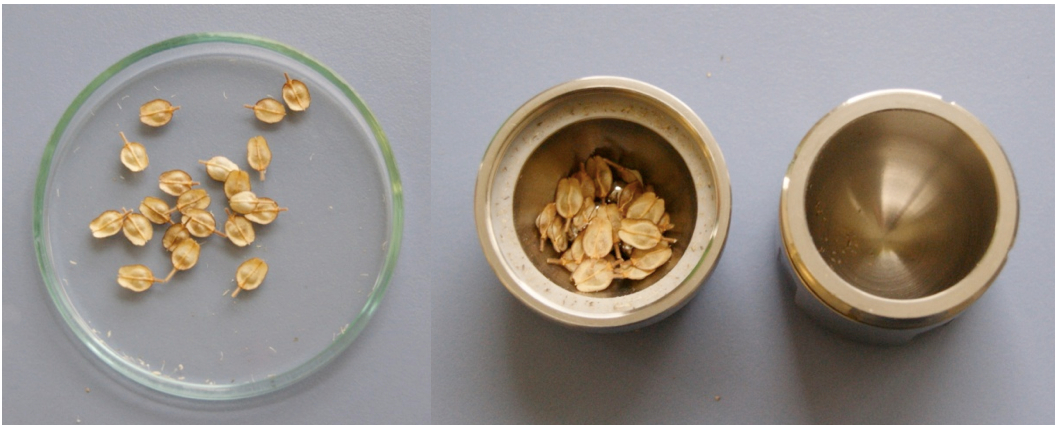

   Figure 2. 20 ripe fruits of L. campestre (left) placed in a grinding jar of the mixer mill together with six 5-mm steel balls (right)


5. Carefully close the grinding jar, fasten it to the mixer mill and agitate for 5 sec at 9 hz.

6. Remove the fruits from the grinding jar and determine the number of open fruits by counting the number of fully intact fruits (Figure 3).


   Figure 3. Fully intact fruits are counted and open fruits are removed


7. Put the intact fruits back to the grinding jar and agitate at 9 hz for another 5 sec, then count again.

8. Repeat these two steps (agitating and counting) another 4 times (or until no intact fruits are left) with agitation times of 10, 20, 40, and 80 sec (overall resulting in cumulative times of 5, 10, 20, 40, 80, and 160 sec).

9. Plot the time (sec) against the number of open fruits to end up with a graph like shown in Figure 4.

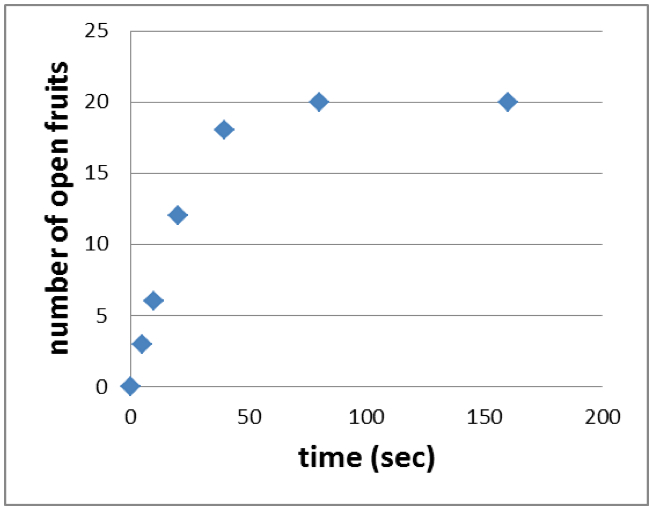

   Figure 4. Cumulative agitation time is plotted against the number of open fruits


10. Because during the following log transformation, you will run into trouble with the 0 data point, you add 1 (+1) to each time point (ending up with cumulative times of 6, 11, 21, 41, 81, 161).

11. Then you apply the log₁₀ to each time point to end up with a sigmoid graph like shown in Figure 5.

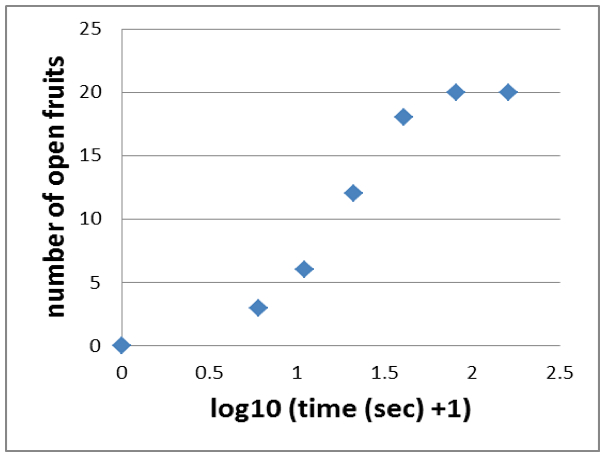

    Figure 5. Applying the log₁₀ to each time point results in a sigmoid graph


12. Sigmoid graphs can be linearized with the logit function. Thus you apply the logit to the number of open fruits. Because the logit is not defined for 0 and 100% (in our case 0 and 20) you end up with a near linear relationship of only 4 data points (Figure 6).

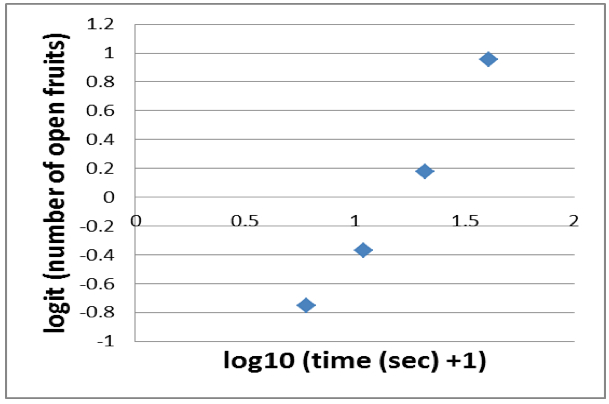

    Figure 6. Near linear relationship derived from a logit transformation of the number of open fruits


13. A linear slope is fitted to the data (for example using the Excel ‘Trendline’-function) which gives you a linear equation (Figure 7).

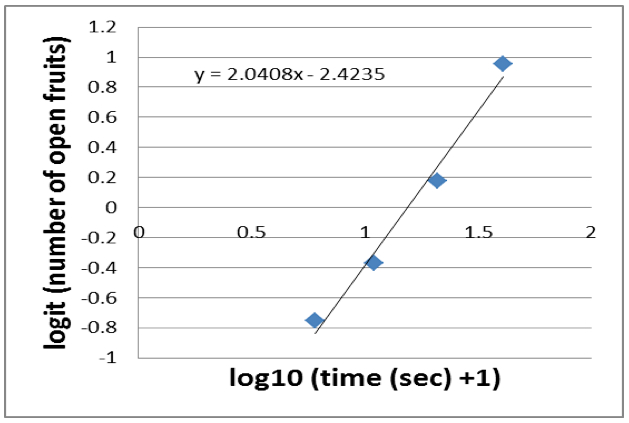

    Figure 7. A linear slope is fitted to the data


14. Now you want to calculate the halftime of dehiscence, which is the time point when half of the fruits (10 fruits) are open. The logit of 50% (in our case 10 fruits) equals 0. Thus, you have to calculate the x-intercept. In our example, the x-intercept is 2.4235/2.0408=1.1875.

15. Finally, you just have to reverse the log transformation and the addition of 1 (see steps 10-11). Thus you calculate 10^1.1875 -1 = 14.3992, which is the dehiscence half-life in seconds.

16. Repeat this measurement at least twice for each plant and calculate the mean half-life and standard deviation.


Acknowledgments

We thank Andreas Mühlhausen and Klaus Mummenhoff (Department of Botany, University of Osnabrück, Germany) for their kind cooperation in our project on fruit dehiscence and Thorsten Lenser for his help with data analysis. This protocol has been adapted based on previously published work (Morgan et al., 1998; Bruce et al., 2002; Arnaud et al., 2010). Our work was supported by a grant from the Deutsche Forschungsgemeinschaft to G.T. (TH 417/6-1).

References

1. Arnaud, N., Girin, T., Sorefan, K., Fuentes, S., Wood, T. A., Lawrenson, T., Sablowski, R. and Ostergaard, L. (2010). Gibberellins control fruit patterning in Arabidopsis thaliana. Genes Dev 24(19): 2127-2132.

2. Bruce, D., Farrent, J., Morgan, C. and Child, R. (2002). PA-precision agriculture: determining the oilseed rape pod strength needed to reduce seed loss due to pod shatter. Biosyst Eng 81(2): 179-184.

3. Lenser, T. and Theißen, G. (2013). Conservation of fruit dehiscence pathways between Lepidium campestre and Arabidopsis thaliana sheds light on the regulation of INDEHISCENT. Plant J 76(4): 545-556.

4. Morgan, C., Bruce, D., Child, R., Ladbrooke, Z. and Arthur, A. (1998). Genetic variation for pod shatter resistance among lines of oilseed rape developed from synthetic B. napus. Field Crops Research 58(2): 153-165.
