Skin TRITC Painting to Track Dendritic Cells Migrating to the Lymph Nodes

Materials and Reagents

1. 10-20 μl pipette tips

2. Paraffin film (Cole-Parmer, catalog number: PM996 )

3. Eppendorf tubes (Eppendorf, catalog number: 022364111 )

4. Felt-tip marker (Sharpie, fine point permanent marker)

5. Mouse (C57BL/6)

6. Tetramethylrhodamine-5-(and-6)-isothiocyanate (TRITC) (Thermo Fisher Scientific, catalog number: T490 )

7. Acetone (Chem Supply, catalog number: AL008-2.5L-P )

8. DMSO (Dimethyl sulfoxide) (Sigma-Aldrich, catalog number: D2650 )

9. Veet (sensitive skin hair removal cream) (Reckitt Benckiser)

10. Eye gel (e.g., Poly Visc, Alcon Laboratories)

11. Ilium Ketamil (Ketamine) (Troy Laboratories)

12. Ilium Xylazil-20 (Xylazine) (Troy Laboratories)

13. Ketamine/Xylazine solution (see Recipes)


Equipment

1. 10-20 μl pipette

2. Spatula

3. Fine balance for weighing 0.1 μg

4. Wahl super trimmer (Wahl, catalog number: 5996415011081 )

5. Heat pad (Stoelting, model: 50300 )

6. Clippers

7. Tissue paper/gauze

8. Ruler


Procedure

1. Preparing TRITC solution
   Note: TRITC solution is prepared fresh prior to use.
   1. Weigh a small amount (e.g., 0.1 μg) of TRITC crystals onto a square Parafilm. The amount of TRITC prepared is dependent on the volume required for use (see step B7).

   2. Dissolve in 1 μl DMSO per 0.1 μg of TRITC on Parafilm.

   3. Prepare acetone in an Eppendorf tube and transfer the dissolved TRITC/DMSO solution into the acetone to dilute to 0.5-1% (v/v) (e.g., 1-2 μl TRITC/DMSO in 200 μl acetone).
   4. Mix tube thoroughly with a pipette.


2. TRITC painting

   1. Anaesthetize a mouse (e.g., C57BL/6) with Ketamine/Xylazine (10 μl per g bodyweight) via intraperitoneal injection.
      Notes:

      1. This procedure should be applicable to all mouse strains used for research.

      2. All procedures involving animals must be performed according to approved institutional, regional or national protocols (as applicable) by appropriately trained and certified personnel.
   2. Lay sedated mouse onto heat pad and apply one drop of eye gel to each eye.

   3. Shave the flank skin of the mouse using clippers.
      Note: We have tested this method on the flank/back skin of mice, however it should be applicable to all other skin sites after appropriate depilation.

   4. Apply Veet to shaved skin for 2 min to thoroughly depilate hair. Wipe off the cream with tissue paper or gauze.

   5. Clean the exposed skin with tissue paper or gauze soaked with water, and dry the skin with dry tissue paper.

   6. With a felt-tip marker and ruler, mark the area on skin to be painted (Figure 1, left). To prevent ink from being absorbed where TRITC is applied, mark the skin ~2-3 mm wider than the desired size.

   7. With a P20 pipette, mix the TRITC solution thoroughly and slowly apply onto the intended area, drop-by-drop (Figure 1, right. We use 10 μl dye/acetone mix for a ~1 cm² diameter painting site. The volume to be used should be scaled accordingly). The dye should be absorbed into the skin within a few seconds.


      Figure 1. Preparing mouse for dye painting. Shave and clean the flank skin of mouse, mark the intended area for painting (left) and apply the dye/acetone mix slowly with a pipette onto the skin (right).


   8. Lay mouse by its side to allow the painted site to dry (approximately 10-15 min). Leave the mouse on the heat pad until awake (approximately 1 h until recovered from anesthesia).


      Figure 2. TRITC-painted mouse. Dye/acetone mix should be absorbed relatively quickly into the skin. Leave mouse by its side, on heat pad, to allow the painted site to dry.


   9. Downstream applications include detection of migratory cells in draining LN using flow cytometry, immunofluorescence microscopy or two-photon intravital microscopy (Figure 3, see Notes 1 and 2 below).


Representative data

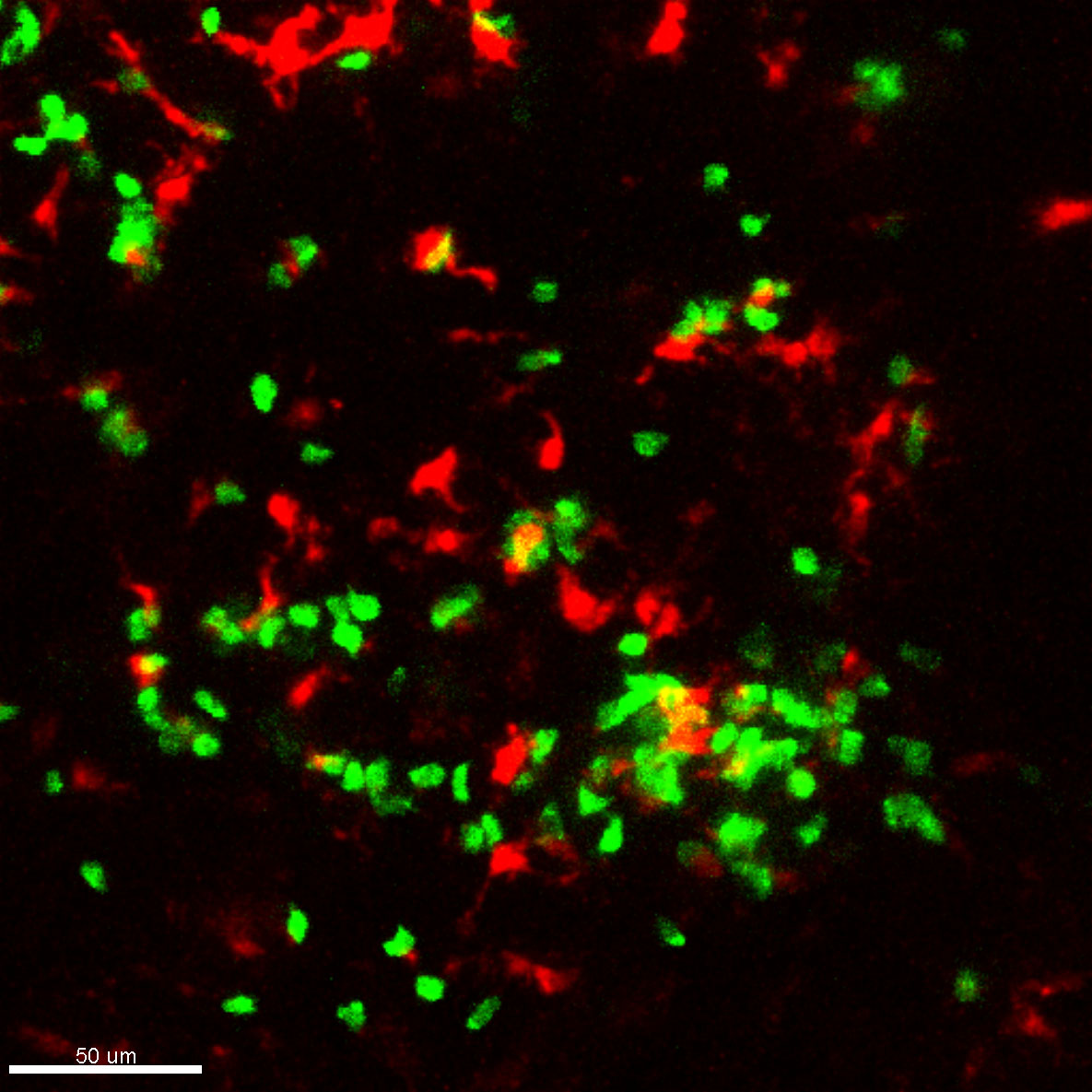

Figure 3. Example of TRITC-labelled DC imaging using two-photon intravital microscopy. Shown is a snapshot from a time lapse movie depicting TRITC-labelled migratory DC (red) and their interaction with CellTrace Violet-labelled CD4 T cells (green) in the T cell zone of mouse inguinal LN. Scale bar, 50 μm.

Notes

1. The dye is photostable and can sustain repeated exposure to laser excitation.

2. For two-photon imaging, TRITC is excitable from a range of 800-880 nm with a Ti:Sa laser.

3. We observed only very low-level dye drainage to the draining LN, most of which was retained in the subcapsular sinuses or captured by the macrophages that line the periphery of the LN. Cells labeled by the dye, on the other hand, can be readily distinguished by their high fluorescence intensity. TRITC-painted migrants can be identified via flow cytometry or immunofluorescence confocal microscopy. In our experiments with cutaneous HSV infection, the majority of TRITC^hi cells in the draining LN appeared to be CD11c⁺ MHC-II^hi, suggesting that they are migratory DCs.

4. We observed migration of cells in the draining LN a few hours following painting. This may reflect homeostatic circulation of the cells, or alternatively activation of cells triggered by the procedures performed (shaving, depilation, dye painting). Regardless of what triggered their migration, the presence of these cells did not affect our ability to detect migratory DCs arriving from skin presenting antigens after virus infection.


Recipes

1. Ketamine/xylazine solution
   For 10 ml solution:
   1 ml Ilium Ketamil (Ketamine)
   0.75 ml Ilium Xylazil-20 (Xylazine)
   8.25 ml PBS
   Store at 4 °C
   Note: Mice are anesthetized with 10 μl per g bodyweight.


Acknowledgments

This protocol was adapted from our publication (Hor et al., 2015). This work was supported by the National Health and Medical Research Council, and by the Australian Research Council.

References

1. Hor, J. L., Whitney, P. G., Zaid, A., Brooks, A. G., Heath, W. R. and Mueller, S. N. (2015). Spatiotemporally distinct interactions with dendritic cell subsets facilitates CD4⁺ and CD8⁺ T Cell activation to localized viral infection. Immunity 43(3): 554-565.
