ELISPOT Assay to Measure Peptide-specific IFN-γ Production

Materials and Reagents

1. Nitrile gloves

2. Sterile 15 ml and 50 ml polypropylene tubes

3. Disposable sterile pipettes: 2 ml, 5 ml, 10 ml, 25 ml

4. Filters for syringes: 0.45 μM and/or 0.22 μM

5. Multiscreen _HTS-IP plates (PVDF membrane) (Merck, catalog number: MSIPS4510 )

6. Mouse (BioLegend, catalog number: 575402 ) or human (Thermo Fisher Scientific, Gibco^TM, catalog number: PHC0026 ) recombinant IL-2

7. Microbeads (Miltenyi Biotec)
   Note: Catalog numbers depend on the cell type to be tested.

8. Dynabeads magnetic beads (Thermo Fisher Scientific, USA, https://www.thermofisher.com/kr/en/home/brands/product-brand/dynal.html)
   Note: Catalog numbers depend on the cell type tested.

9. Ethanol

10. Peptides or antigen from the protein of choice to stimulate antigen-specific IFN-γ

11. Rat anti-mouse IFNγ mAb, clone AN18, purified (capture) (50 μg, Thermo Fisher Scientific, eBioscience^TM, catalog number: 14-7313-81 or 500 μg, Thermo Fisher Scientific, eBioscience^TM, catalog number: 14-7313-85 ) mouse anti-human IFNγ mAb, p clone NIB42, purified (capture) (50 μg, BioLegend, catalog number: 502403 or 500 μg, BioLegend, catalog number: 502404 )
    Note: Either titrate or use as recommended by manufacturer. Prepare immediately before coating wells.

12. Rat anti-mouse IFNγ mAb, clone R4-6A2, biotinylated (detection) (50 μg, Thermo Fisher Scientific, eBioscience^TM, catalog number: 13-7312-81 or 500 μg, Thermo Fisher Scientific, eBioscience^TM, catalog number: 13-7312-85 ) or mouse anti-human IFNγ mAb, clone 4S.B3, biotinylated (detection) (50 μg, BioLegend, catalog number: 502503 or 500 μg, BioLegend, catalog number: 502504 )
    Note: Either titrate or use as recommended by manufacturer.

13. 0.5% BSA

14. Streptavidin-horseradish peroxidase (BioLegend, catalog number: 405210 )

15. 3-amino-9-ethylcarbazole (AEC) substrate/chromogen (BD, catalog number: 551951 )

16. Milli-Q water

17. Sodium chloride (NaCl)

18. Potassium chloride (KCl)

19. Sodium phosphate dibasic (Na₂HPO₄)

20. Potassium phosphate monobasic (KH₂PO₄)

21. Hydrochloric acid (HCl)

22. Sodium bicarbonate (NaHCO₃)

23. Sodium phosphate (Na₂CO₃)

24. IMDM-1640

25. Fetal calf serum (FCS)
    Note: Any brand that is suitable for cell culture and is heat inactivated at 56 °C for 30 min.

26. Penicillin-streptomycin (Tissue culture grade; Life technologies)

27. β-mercaptoethanol

28. Tween 20 (store at room temperature)

29. IMDM culture medium

30. L-glutamine (Tissue culture grade; Life technologies)

31. Phytohemagglutinin-L (PHA, positive control) stock (Roche Diagnostics, catalog number: 11249738001 ). Refer to Recipes section for details

32. Sterile phosphate buffered saline (1x PBS) (see Recipes)

33. Coating buffer working solution (see Recipes)

34. Blocking solution (see Recipes)

35. Anti-IFN-γ capture working solution (see Recipes)

36. Biotin-anti-IFN-γ working solution (see Recipes)

37. Streptavidin-horseradish peroxidase working solution (see Recipes)

38. Tween 20 working solution (see Recipes)

39. 10% fetal calf serum in IMDM culture medium (see Recipes)

40. PHA stock solution (see Recipes)


Equipment

Note: ELISPOTS on the plate can be manually counted under a dissection microscope, or stereomicroscope (For example, Greenough, high-performance zoom stereomicroscope, SMZ 168-series). Alternatively, there are several specialist automated systems for high throughput screening (AELVIS, Autoimmun Diagnostika, Bio-Sys, Cellular Technology and the Zeiss reader) and there pros and cons discussed elsewhere and beyond the scope of this protocol (Janetzki et al., 2015).

1. Waste container

2. Gilson pipette and tips: P-2, P-10, P-20, P200, P1000

3. Gilson multichannel pipette with matched tips

4. Beckman Allegra 12 refrigerated centrifuge (Beckman Coulter, model: Allegra X-12 )

5. Class II biohazard hood

6. Incubator

7. 1 L bottles


Procedure

There are two ways to measure cell type-specific responses. Firstly, isolate total CD4⁺ and/or CD8⁺ T cells and culture with dendritic cells (DCs) and the peptide of choice (Karunarathne et al., 2016). T cells are generally enriched from experimental mice using bead based techniques such as Dynabeads magnetic beads (Untouched Mouse T cells kit; Life Technologies, US) or Miltenyi Biotec (CD90.2 T cell isolation; Germany). DCs are immuno-magnetically isolated from naive mice (for use as antigen-presenting cells; APC) using anti-mouse CD11c Microbeads (Miltenyi Biotec; Germany). DCs should not be isolated from experimental mice where DC function is known to be compromised. Both cell types (T cells and DCs) can also be isolated using flow cytometry-based cell sorting. Approximately 2 x 10⁵ T cells, from individual mice, should be co-cultured with 2 x 10⁴ DC, in 4-8 replicate wells per sample with 20 μg/ml peptides, recombinant protein or no peptide, as previously described (Howland et al., 2013). Alternatively, if peptides are specific for CD4⁺ but not CD8⁺ T cells and vice versa, then total spleen cell with no additional DCs or total T cells with DCs may be used. These combined cells are then cultured with the specific peptide on ELISPOT plates coated with anti-IFN-γ antibody. The IFN-γ-specific antibody on an ELISPOT plate captures the IFN-γ immediately after secretion from the cells. For human T cells, total PBMCs containing APC and T cells are cultured with the peptide of choice. For the positive control, just add PHA to total cells or isolated T cells without DCs.

1. Day 1
   1. Coat Multiscreen _HTS-IP plates with primary antibody diluted in coating buffer:
      Before coating the plate with antibody, humidify the membrane in each well with 15 μl of 70% ethanol (in Milli-Q water) for 1 min. Rinse with 150 μl sterile PBS three times before the ethanol evaporates. Then coat plates with 50 μl anti-IFNγ antibody (capture) in sterile coating buffer. Incubate overnight at 4 °C.
      Notes:

   1. Plate may be coated 1 week prior to use but must be stored in humid conditions (e.g., box with tissue drenched in sterile water or PBS).

   2. The number of wells coated with antibody should take into account the all controls listed below and at least 4-8 replicate wells for each sample.

   3. If possible, it is recommended that a titration of cell numbers (Figure 1), in replicates, be tested to ensure an optimal range of cells for counting.

   4. Ensure that sodium azide is never added to any buffer, at any step as this stops horseradish peroxidase activity.

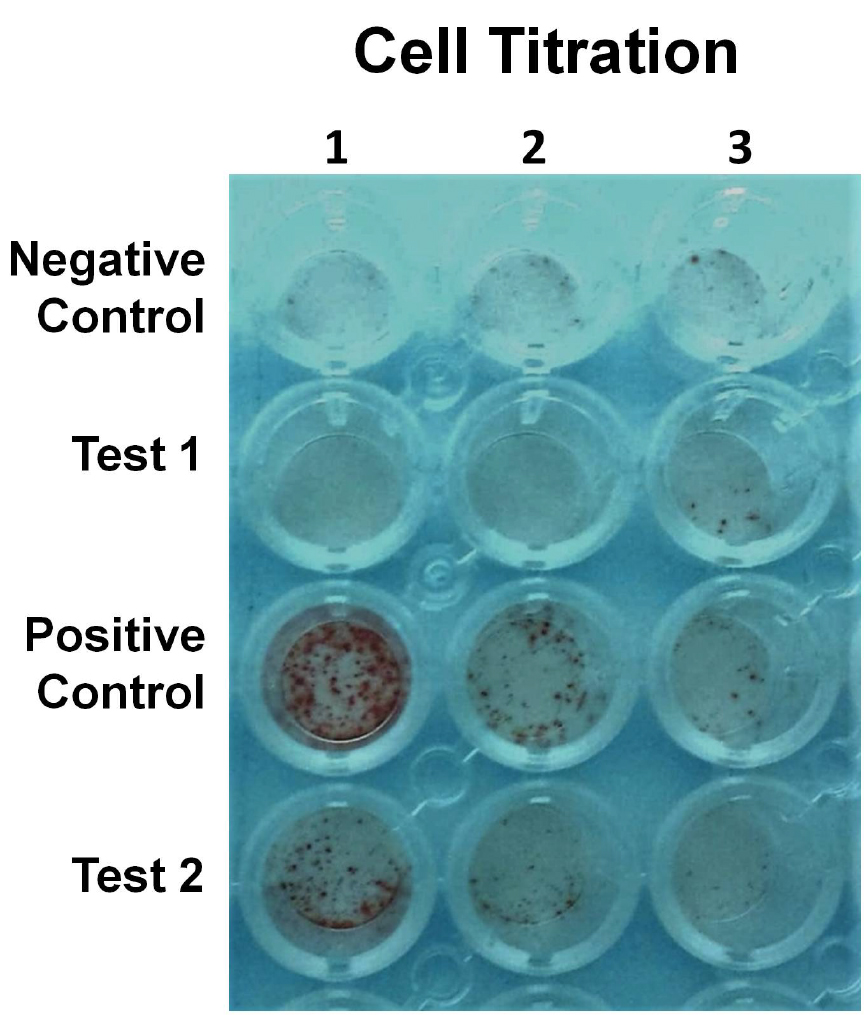

      Figure 1. A representative example of an ELISPOT assay. A titration of cell numbers from negative and positive controls and 2 test samples. Test 1 shows no titration with dilution and thus and cell numbers are similar to negative control. Test 2 has declining number of cells with titration indicating IFN-γ-secreting cells.


   2. The following control wells should be incorporated into the assay:

      1. No antigen stimulation (DC and T cells cultured without peptide).

      2. Positive control with a lymphocyte mitogen (T cells without DC but with mitogen like PHA at 5-10 μg/ml).

      3. No cells; no primary antibody.


2. Day 2

   1. Block membrane with blocking solution.

      1. Remove primary antibody solution.

      2. Wash off unbound antibody with 150 μl sterile PBS per well, at least twice.

      3. Block membrane with 150 μl per well of cell culture medium (see Recipes) for at least 2 h at 37 °C.
         Note: Keep changing media if it goes deep pink, until orange.

   2. Prepare mouse splenocytes (MacPherson et al., 2001; Wykes et al., 2007) or isolate T cells/DCs, suspended in cell culture medium (see Recipes). Plan for each sample to have 4-8 replicate wells.

   1. For assays using total splenocytes or PBMCs, cells are resuspended in cell culture medium, at final concentrations range of 2 x 10⁶ to 6 x 10⁶ cells/ml for testing at possible testing range of 1 x 10⁵ to 3 x 10⁵ splenocytes or PBMCs per well.

   2. Isolated T cells are usually resuspended at 4 x 10⁶ cells/ml for testing 2 x 10⁵ T cells cultured with 2 x 10⁴ DC per well.
      Note: The desired cell concentration is dependent on the intensity of the immune response. If the expected response is not known, a serial dilution of cell concentrations is recommended.

   3. Antigens are diluted (20 μg/ml) in culture medium eventually containing recombinant IL2 (60 U/ml).

   3. Cell stimulation

   1. Discard blocking medium.

   2. Add 50 μl of the cell suspension and 50 μl of diluted peptide (antigen) per well (final volume: 100 μl/well, corresponding to 10 μg/ml for the antigen and 30 U/ml for recombinant IL2).
      Note: To minimize overseeding of the wells, it is recommended to not add more than 3 x 10⁵ cells/well.

   3. Incubate for 18 to 24 h at 37 °C, 5% CO₂, 95% humidity.
      Note: Do not move the plates while the cells are culturing. This will lead to ‘snail trail’ spots that will not be well defined. Don’t stack the plates if you have more than one to prevent edge effects.


3. Day 3
   1. Secondary antibody
      1. Remove culture medium with cells.

      2. Wash plate 3 times with PBS and 3 times with PBS/0.01% Tween 20.
         Note: Ensure you include Tween 20 in the wash buffer. Some cells will have started attaching after culture overnight. Tween 20 will help wash these off the membrane. Do not use a plate washer at this stage if available.

      3. Dilute biotinylated anti-IFNγ antibody (detection) in PBS/0.5% BSA. Pass the detection antibody mixture through a 0.45 μm or 0.22 μm filter to remove aggregates. Some of the mixture will be lost by filtration and original volume must be scaled up accordingly. Add 50 μl of detection antibody mixture to each well.
         Note: Failure to filter secondary antibody may results in non-specific spot formation due to protein aggregates.

      4. Incubate for 2 h at 37 °C, 5% CO₂, 95% humidity.

      5. Then incubate overnight at 4 °C, in a sealed box with tissues moistened with sterile water or PBS which provide humidity.


4. Day 4

   1. Wash plate 6 times with PBS/0.01% Tween 20.

   2. Enzyme conjugate and substrate development
   1. Prepare streptavidin-horseradish peroxidase dilution in PBS.

   2. Add 50 μl per well of streptavidin-horseradish peroxidase. Incubate for 45 min at room temperature.
      Note: Exceeding 1 h incubation with enzyme conjugate could result in increased background color.

   3. Remove streptavidin solution, wash 3 times with PBS/0.01% Tween 20, followed by 3 washes with PBS.
      Notes:
   1. The final washes with only PBS are important as Tween 20 will interfere with the spot development.

   2. The plastic base should be taken off the bottom of the plate to enable thorough washing of the membrane before adding substrate/chromogen. For example, after incubation with the streptavidin horseradish peroxidase conjugate, remove the base and wash both sides of the membrane under running distilled water. This helps to prevent high background as some reagents can leak through the membrane into the bottom tray of the plate.

   4. Add 75 μl/well AEC substrate (after passing through 0.45 μM or 0.22 μM filter). Incubate for 5 min in the dark (under aluminum foil or in a drawer) and then check for spots. If spots are not clearly visible, incubate again and check regularly. Stop spot development when spots are clearly visible but before background membrane color becomes too dark and the contrast between spot and membrane color is lost.
      Note: Optimization of the time of substrate development is critical. Time of development may vary. Over-development will result in increased background.

   5. Stop spot development using running tap water and wash extensively. While washing, remove the bottom of the plate and continue rinsing.

   6. Press the plate thoroughly to an absorbent tissue paper.

   7. Let plate dry overnight in the dark. Spot intensity may decrease with exposure to light.
      Note: Spots may become sharper if membranes are stored overnight. If storing, wrap membranes in foil.


Data analysis

1. Spots are counted under a dissection microscope or in an automated ELISPOT reader, and the frequency of secreting cells is calculated:
   One cell = One spot
   Number of spots = number of cells secreting cytokines
   Intensity and size of spot = relative cytokine-secreting ability of cells

2. Background subtraction
   For ELISPOT data analysis, the background value is subtracted from measured results. Each specimen group should have a single background spot mean/median value, calculated from the negative control (T cells and DCs without antigen). Then for each antigen group in the sample, the mean/median for the group is calculated, the background mean/median is then subtracted and the count is normalized by the number of cells per well.

3. Assay

1. Positive should be > 50 spots/10⁶ cells.

2. Negative control should ideally be 0 spots/10⁶ cells. If > 0 and < 50 spots/10⁶ cells, subtract the negative control reading from the test count to correct for background staining. If > 50 spots/10⁶ cells, repeat the assay.

3. Contamination:
1. If one of the replicate wells of one assay condition clearly appears contaminated, ignore that particular well and use the result from the other wells.

2. If multiple wells clearly appear to be contaminated, repeat the assay.

4. Results
   For each test antigen, results are reported as spot forming cells (SFC)/million for human PBMC or SFC/spleen for mouse spleen cells.


Notes

1. As horseradish peroxidase activity is completely stopped by sodium azide, please ensure it is never added to any buffer or reagents associated with this assay.

2. There are several brands of antibodies available that are suitable for this assay and can even be purchased as antibody pairs. However, each new antibody vial should be tested in a checkerboard titration to determine the optimal dilution (Asai, 2000 #14220).


Recipes

1. Sterile phosphate buffered saline (1x PBS)
   Start with 800 ml of distilled water, to which add 8 g of NaCl; 0.2 g of KCl; 1.44 g of Na₂HPO₄ and 0.24 g of KH₂PO₄
   Adjust the pH to 7.4 with HCl
   Add distilled water to a total volume of 1 L
   Stock is stored in 1 L bottles
   Store at room temperature

2. Coating buffer working solution (0.5 M carbonate-bicarbonate buffer pH 9.6)
   3.7 g NaHCO₃ and 0.6 g Na₂CO₃ (anhydrous) made up to 100 ml with distilled water
   Make sure that the carbonate bicarbonate is dissolved by gently mixing it until there is no powder residue left and filter sterilized with 0.22 μM filter
   Check pH which should be ~9.6 and occasionally needs to be adjusted
   Store at room temperature in the dark

3. Blocking solution
   IMDM culture medium
   10% fetal calf serum
   1% penicillin-streptomycin
   0.1% β-mercaptoethanol

4. Anti-IFN-γ capture working solution
   This is the capture antibody. Prepare immediately before coating wells. Need 50 μl per well, at a concentration according to manufacturer's instruction or by titration for each antibody stock

5. Biotin-anti-IFN-γ working solution
   This is the detection antibody. Prepare as in PBS. Need 50 μl per well, at a concentration according to manufacturer's instruction or by titration for each antibody stock

6. Streptavidin-horseradish peroxidase working solution
   Prepare a dilution of the stock in PBS. Need 50 μl per well, at a concentration according to manufacturer's instruction or by titration for each antibody stock

7. Tween 20 working solution
   Add 0.5 ml Tween 20 stock to 1,000 ml 1x PBS
   Store at room temperature

8. 10% fetal calf serum in IMDM culture medium (store at 4 °C in the dark)

1. Fetal calf serum stock
   Thaw and dispense into 50 ml aliquots. Store at -20 °C

2. IMDM culture medium (store at 4 °C in the dark)

3. L-glutamine stock
   Supplied as 50 ml at 200 mM concentration. Store at -20 °C
   Thaw and dispense into 1 or 5 ml aliquots depending on volume of culture medium to be prepared later. Store at -20 °C in the dark until needed

4. Penicillin-streptomycin (5,000 U/ml)
   Supplied as 100 ml at 5,000 U/ml concentration. Store at -20 °C
   Thaw and dispense into 1 or 5 ml aliquots depending on volume of culture medium to be prepared later. Store at -20 °C in the dark until needed

5. 10% fetal calf serum in IMDM culture medium (complete medium)
   For 100 ml: add 10 ml FCS (a), 1 ml L-glutamine (c), 1 ml penicillin-streptomycin (d), 100 μl β-mercaptoethanol, and to 88 ml IMDM (b). Store at 4 °C in dark

9. PHA stock solution
   Add to 10 ml PBS to the PHA powder for a concentration of 500 μg/ml
   Aliquot and freeze in volumes of 10 μl. Store at -80 °C
   Notes:

1. Do not re-freeze thawed PHA.

2. PHA (Lectin, positive control) stock is supplied as 5 mg of purified, salt-free lyophilized powder.

3. In the assay, use at a final concentration of 5-10 μg/ml. Add 1-2 μl of stock solution to each well containing cells in a 100 μl volume

Acknowledgments

MNW was supported by ARC Future Fellowship and NHMRC. L.R. was supported by Singapore’s A*STAR and NRF Singapore (NRF2007NRF-RF001-226).The authors wish to thank Mr Josh Horne-Debets for the ELISPOT image.
The ELISPOT method was originally developed to detect antigen-specific antibodies from B cells (Czerkinsky et al., 1983) and has over the years been modified by several groups to detect cytokines produced by antigen-specific cells.
