Investigating Neural Stem Cell and Glioma Stem Cell Self-renewal Potential Using Extreme Limiting Dilution Analysis (ELDA)

Materials and Reagents

1. Pipette tips: 10 ml, 5 ml, 2 ml (Axygen)
2. 24-well tissue culture treated plate (Corning, catalog number: 3524 ) (Storage condition: 15 °C to 25 °C)
3. 6-well tissue culture treated plate (Corning, catalog number: 3506 ) (Storage condition: 15 °C to 25 °C)
4. 96-well Ultra-Low Attachment plate (Corning, catalog number: 3474 ) (Storage condition: 15 °C to 25 °C)
5. 40 μm cell strainer (Corning, catalog number: 352340 ) (Storage condition: 15 °C to 25 °C)
6. PIK3CA^H1047R; PTEN^lox/lox; UBC-CreERT2 mice (Daniel et al., 2017 and 2018), aged E13.5 or 6 weeks old
   Note: NSPCs can be isolated more efficiently from younger mice. Mice used here were on a C57BL/6 genetic background.
7. (Optional) Antibody

   1. anti-GFAP(glial fibrillary protein)
   2. anit-Tuj1
8. DMEM F12 (Thermo Fisher Scientific, Gibco^TM, catalog number: 10565042 ) (storage condition: 4 °C)
9. Accutase cell detachment solution (BD, catalog number: 561527 ) (storage condition: 4 °C)
10. Fetal Calf serum (FCS) (Bovogen Biologicals, catalog number: SFBS-FR ) (storage condition: -20 °C)

11. Penicillin-streptomycin (10,000 U/ml) (Thermo Fisher Scientific, Gibco^TM, catalog number: 15140-122 ) (storage condition: -20 °C)
12. B-27 supplement (50x) (Thermo Fisher Scientific, Gibco^TM, catalog number: 17504-044 ) (storage condition: -20 °C)
13. Epidermal growth factor (EGF) (Thermo Fisher Scientific, Gibco^TM, catalog number: PHG0313 ) (storage condition: -20 °C)
14. Basic fibroblast growth factor (bFGF) (BioVision, catalog number: 4036 ) (storage condition: -20 °C)

15. Laminin (Thermo Fisher Scientific, Gibco^TM, catalog number: 23017-015 ) (storage condition: -20 °C)
16. NaCl (Sodium Chloride, Thermo Fisher Scientific, Ajax Finechem, Univar, catalog number: AJA465-500G )
17. KCl (Postassium Chloride, Merck, catalog number: 1049360500 )
18. Na₂HPO₄ (di-Sodium hydrogen phosphate, Merck, catalog number: 106586 )
19. KH₂PO₄ (Potassium dihydrogen orthophosphate, Thermo Fisher Scientific, Ajax Chemicals, catalog number: 392 )
20. Phosphate buffered saline (PBS, see Recipes)
21. Neurosphere culture media (see Recipes)
22. Differentiated media (see Recipes)


Equipment

1. Pipettes (METTLER TOLEDO, Pipet-X, model: PX-100 )
2. Biohazard safety cabinet (EuroClone, model: BioAir-TopSafe 1.2-ABC )
3. Centrifuge (Dynamica Scientific, model: Velocity 18R )
4. DigiRetina16 camera (Tucsen)
5. Neubauer Hemocytometer (Sigma-Aldrich, catalog number: Z359629 )
6. Water bath at 37 °C (Froilabo, model: BMUTE)
7. Humidified incubator at 37 °C, 5% CO₂ (Thermo Fisher Scientific, Heraeus, model: Heracell^TM 150 )
8. Inverted phase contrast microscope (Nikon, model: Diaphot , with ELWD 0.3 phase contrast)


Software

1. ELDA online software (http://bioinf.wehi.edu.au/software/elda/)

Procedure

1. Neurosphere culture
   Mutant and normal neural stem cells (NSCs) were isolated from a PIK3CA-PTEN mice, as described previously (Daniel et al., 2017 and 2018). This protocol can be used for both wild-type and mutant neurospheres grown in neurosphere culture media.

   1. Dissociate NSCs to single cell suspension by incubating with Accutase cell detachment solution for 5 min at 37 °C.
   2. Stop the dissociation process by adding 2 ml of PBS.
   3. Filter the mixture through a 40 μm cell strainer.
   4. Add the neurosphere cell culture media to the filtrate.
   5. Centrifuge at 300 x g for 5 min.
   6. Resuspend single cell suspension in NSC culture media.
   7. Perform a cell count using a hemocytometer.
   8. Seed cells into a 24-well ultra-low attachment plate and allow sphere formation.
   9. Incubate plate in a 37 °C, 5% CO₂ humidified incubator for 7 days.
   10. Replenish half the medium, every second day.


2. Extreme limiting dilution assay (ELDA) for neurospheres

   1. Dissociate neurospheres into a single cell suspension, as described in Procedure A, Steps 1-6.
   2. Determine cell number, using a hemocytometer.
   3. Seed cells at decreasing densities (at 20, 10, 5, 1 cell/well, into a 96-well ultra-low attachment plate), in neurosphere culture media. Plate 24 replicates per cell density/number.
   4. Incubate in a 37 °C, 5% CO₂ humidified incubator for 7 days (up to 14 days).
   5. From day three onward, monitor each well for signs of spheroid formation, using a phase contrast microscope; photograph, as necessary. Images shown were captured using a DigiRetina16 camera (http://www.tucsen.com).
   6. At seven days, score any wells that contain one or more sphere greater than ~20 μm diameter. Sphere size is measured using pre-calibrated scale bar function in the image capture software (TCapture5.1 software is free at http://www.tucsen.com).
   7. Input the data into ELDA software at http://bioinf.wehi.edu.au/software/elda/ in the format indicated in Data analysis, Step 3, below.
   8. Select “Plot Results” checkbox; default confidence interval is set at 0.95.
   9. Click “Run”.
   10. Results plot can be printed as a PDF and tabulated results can be used to generate a bar graph.

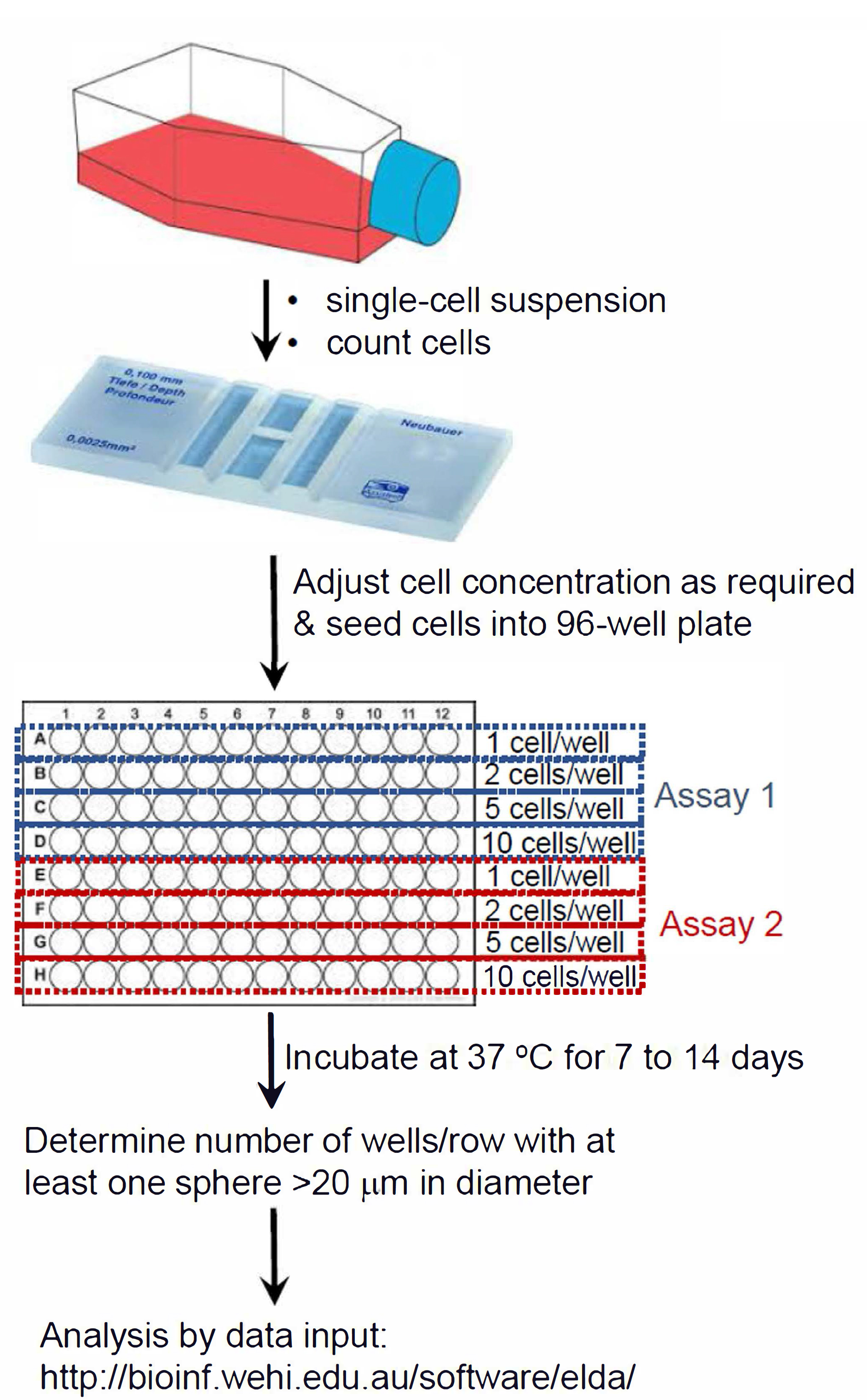

       Figure 1. Summary schematic of ELDA setup


3. Neural stem cell differentiation
   This protocol is used to culture NSC cells in differentiation media for 7 days, harvest cells, then culture back in neurosphere medium (see Figure 2F).

   1. Resuspend NSC single cell suspension in differentiation medium (DMEM-F12, 10% Fetal Calf Serum, penicillin-streptomycin [100 U/ml]).
   2. Seed 1 x 10⁵ cells/well onto a 6-well standard adherent cell culture treated plate, pre-coated with laminin.
   3. Add 2 ml of differentiated medium to each well.
   4. Incubate in a 37 °C, 5% CO₂ humidified incubator for 7 days to allow differentiation.
   5. Replenish medium every second day.
   6. Harvest cells at Day 7 and perform ELDA (Procedure B).
   7. Optionally, differentiation of NSCs can be checked in a separate cell preparation using anti-GFAP (glial fibrillary protein) antibody to mark glial cells, and anit-Tuj1 antibody to mark neuronal fated cells.

Data analysis

1. Use a phase contrast microscope to monitor for sphere-forming cells and capture image of spheres between wild-type and mutant groups.
2. Score the number of neurosphere-forming unit (NSFU)/number of cells seeded. Spheres > 20 μm in diameter were scored (Figures 2A-2C).
3. Prepare an Excel spreadsheet with the following data.
4. Input this information into the ELDA online software at http://bioinf.wehi.edu.au/software/elda/.
5. Generate a plot with a 95% confidence interval to give sphere-forming frequency between wild-type or mutant groups (Figures 2D, 2E, 2G and 2H).

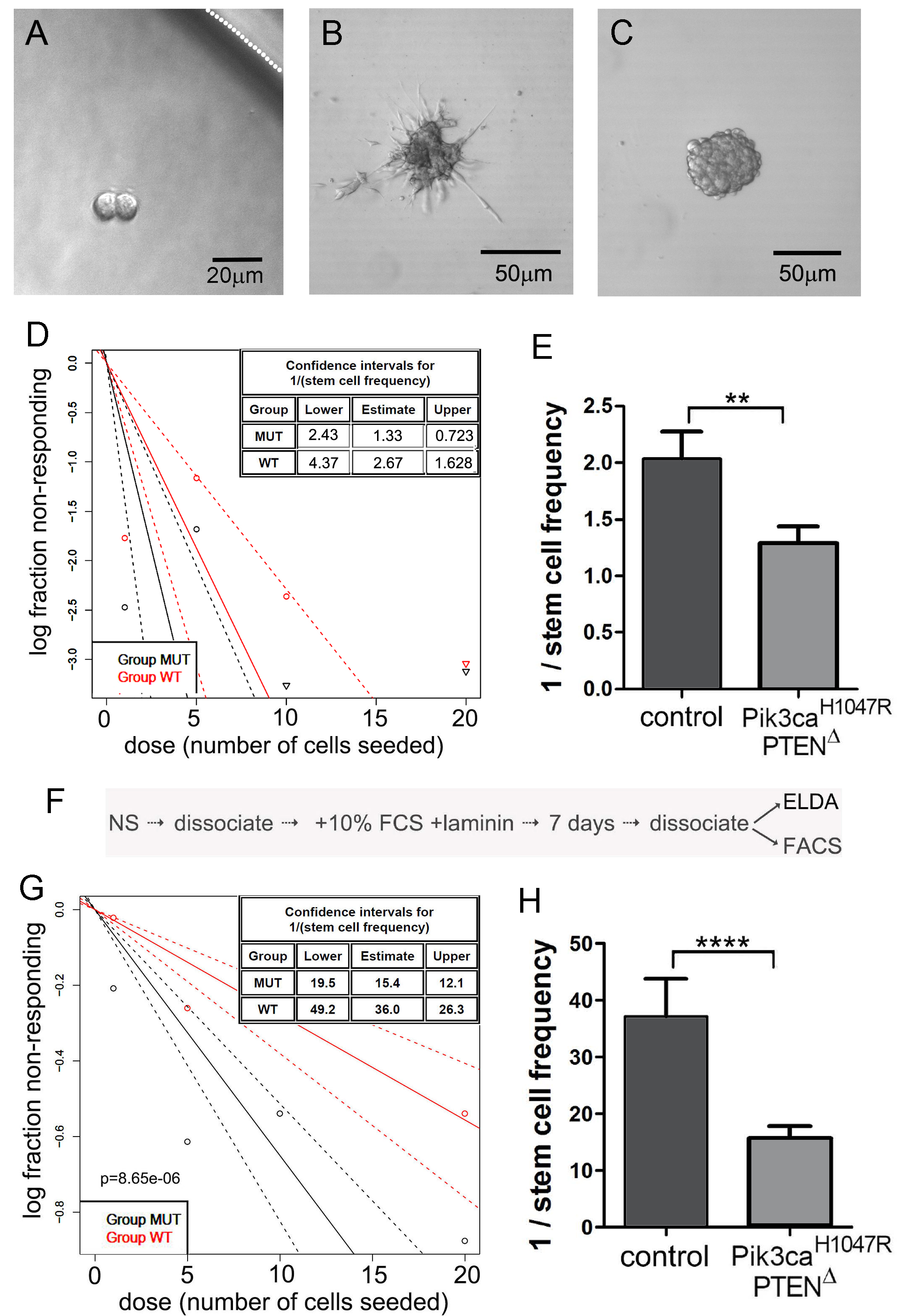

   Figure 2. Extreme limiting dilution analysis (ELDA) for the assessment of stem-like cell self-renewal and a variation involving an intermediate step to differentiate NSCs. A. Representative NSCs following 7 days of culture after seeding a single NSC, showing two NSCs but no neurosphere formation. The white dotted line indicates the inner edge of a well on the 96-well plate. B. NSCs divided but spontaneous differentiated, showing no indication of neurosphere formation. C. A well showing formation of a single neurosphere after 7 days following seeding of a single NSC; this was scored as “positive”. D. Neurosphere forming capacity showing data output using the online algorithm (Procedure B). E. Graphical representation of the reciprocal of stem cell frequency calculated in (D). Note that PI3K mutant cells formed spheres more efficiently than control NSCs. F. The protocol flow after the initial ELDA, used to differentiate NSCs, then perform a second ELDA to measure inherent sphere forming stability. G and H. ELDA data output of the same NSC genotypes used for (D) and (E), following forced differentiation and replating in neurosphere medium.

Notes

ELDA assay can be used to study self-renewal ability of any type of cells. With ELDA software, the frequency of sphere-forming cells can be generated and compared between multiple cell sub-populations and different treatments.

Recipes

1. 10x Phosphate buffered saline, pH 7.3
   Milli-Q H₂O
   1,370 mM NaCl
   27 mM KCl
   81 mM Na₂HPO₄
   14.7 mM KH₂PO₄
2. Neurosphere culture media (final working concentrations)
   DMEM/F12
   Penicillin-streptomycin (100 U/ml)
   1x B27 (from 50x stock)
   10 ng/ml EGF
   10 ng/ml bFGF
3. Differentiated media
   DMEM/F12
   Penicillin-streptomycin (100 U/ml)
   10% FCS


Acknowledgments

This work was supported by the CASS Foundation Grant (#7491). A brief description of the protocol described in this article originally appeared in Daniel et al. (2017 and 2018). The original ELDA protocol is described in Hu and Smyth, 2009.
