Eicosanoid Isolation from Mouse Intestinal Tissue for ELISA

Materials and Reagents

1. Culture tubes (Corning, Falcon, catalog number: 352059)
2. 15 ml tubes (Corning, Falcon, catalog number: 352097)
3. Flat bottom 96-well plates, transparent (Corning, Costar, catalog number: 3370)
4. pH test strips (GE Healthcare, Whatman, catalog number: 2613-991)
5. SPE Cartridges (C-18) (Cayman Chemical, catalog number: 400020)
6. Paper towel
7. Liquid nitrogen
8. UltraPure^TM water (Thermo Fisher Scientific, Invitrogen^TM, catalog number: 10977)
9. Indomethacin (Sigma-Aldrich, catalog number: I8280-5G)
10. PBS (Thermo Fisher Scientific, Gibco^TM, catalog number: 10010)
11. 200 proof Kopec Ethanol (Decon Labs, catalog number: V1001)
12. Methanol (Fisher Scientific, catalog number: A452SK)
13. Ethyl acetate (Sigma-Aldrich, catalog number: 270989)
14. Prostaglandin E₂ ELISA Kit (Monoclonal) (Cayman Chemical, catalog number: 514010)
15. BCA assay kit (Thermo Fisher Scientific, Pierce^TM, catalog number: 23227)
16. K₂HPO₄ (Fisher Scientific, catalog number: P288)
17. KH₂PO₄ (Fisher Scientific, catalog number: P285)
18. DMSO (Sigma-Aldrich, catalog number: D8418)
19. EDTA (Life Technologies, catalog number: 15575020)
20. Sodium acetate (Sigma-Aldrich, catalog number: S2889)
21. Acetic acid (Sigma-Aldrich, catalog number: A6283)
22. Phosphate buffer (see Recipes)
23. 1 M acetate buffer (see Recipes)


Equipment

1. Forceps
2. Scissors
3. POLYTRON^® PT 2500 E Stand Dispersion Unit (Ecoline) with 12 mm aggregate (Kinematica) or similar
4. Fridge
5. Centrifuge for 15 ml reaction tubes capable of cooling (Eppendorf 5810R or similar)
6. Vortex
7. 96-well plate reader capable of measuring absorbance between 405 and 420 nm and 562 nm (e.g., Molecular Devices, model: Spectramax^® M2)
8. Reacti-Vap^TM Evaporator (Thermo Fisher Scientific, catalog numbers: TS-18825 or TS-18826) or similar
9. Nitrogen gas with pressure gauge hooked up to evaporator
10. SPE Vacuum Manifold (Sigma-Aldrich, catalog number: 57250-U or similar)
11. Vacuum trap (e.g., Fisher Scientific, Fisherbrand^TM Reusable Heavy-Wall Filter Flasks, catalog number: FB3001000) connected to central vacuum system or pump (e.g., Merck, Chemical Duty Vacuum Pressure Pump, catalog number: WP6122050) via tubing and rubber stopper


Procedure

Workflow:

1. Harvest intestinal tissue and immediately snap freeze in liquid nitrogen. To harvest intestine, cut open the peritoneum of sacrificed mouse, find stomach below lower end of the ribcage, separate small intestine from stomach and gently pull with forceps while separating from mesentery using scissors. Separate from anus and lay out to get an overview of the tissue. Make sure to harvest comparable areas of tissue from individual animals.
   Note: 2 cm of tissue is easily sufficient. Mice do not need starving previous to tissue isolation. It is sufficient to remove large amounts of intestinal content by moving forceps along the chosen piece of intestine on a paper towel and thus squeeze most of the content out.
2. Homogenize tissue in 1 ml phosphate buffer/100 mg. Make sure tissue does not thaw before the homogenization step but drop frozen tissue directly into your homogenization-tube filled with buffer.
   Note: Only turn homogenizer on once the tip is immersed in fluid with tissue. Move sample slightly up and down while homogenizing without removing tip from fluid completely. Homogenize at appropriate speed and for appropriate time to completely homogenize tissue (e.g., speed 26-30 for 10 s on POLYTRON^® PT 2500 E).
3. Remove 30 µl aliquot of homogenate for BCA assay to determine protein concentration later, freeze (dilute 1:10 in PBS for assay: add 270 µl PBS to the 30 µl homogenate and mix).
4. Pre-cool the centrifuge to 4 °C. To precipitate proteins, add 100% ethanol (four times the sample volume, e.g., with 1 ml homogenization buffer use 4 ml ethanol) to each tube. Vortex to mix thoroughly and put at 4 °C immediately. Incubate samples at 4 °C for 5 min, then centrifuge at 4 °C, 3,000 x g for 10 min to remove precipitated proteins. Transfer the supernatant to a clean test tube.
   Note: If you homogenized a large amount of tissue in a lot of buffer, only use a 1.5 ml aliquot for these next steps, otherwise the evaporation will take a very long time. Remember to include this in your back-calculations at the end. Keep the rest of the supernatant at -20 °C until you are finished with the isolation, can be used as a backup in case something goes wrong.
5. Evaporate the ethanol under nitrogen to complete dryness (takes 60-90 min for 1.5 ml)

   1. Use ~2 PSI pressure per 16 samples (increase or decrease pressure if more or less samples are dried), increase accordingly. Keep moving needles down onto samples to a distance so bubbling can be heard but no splashing is observed. See also Figure 1.

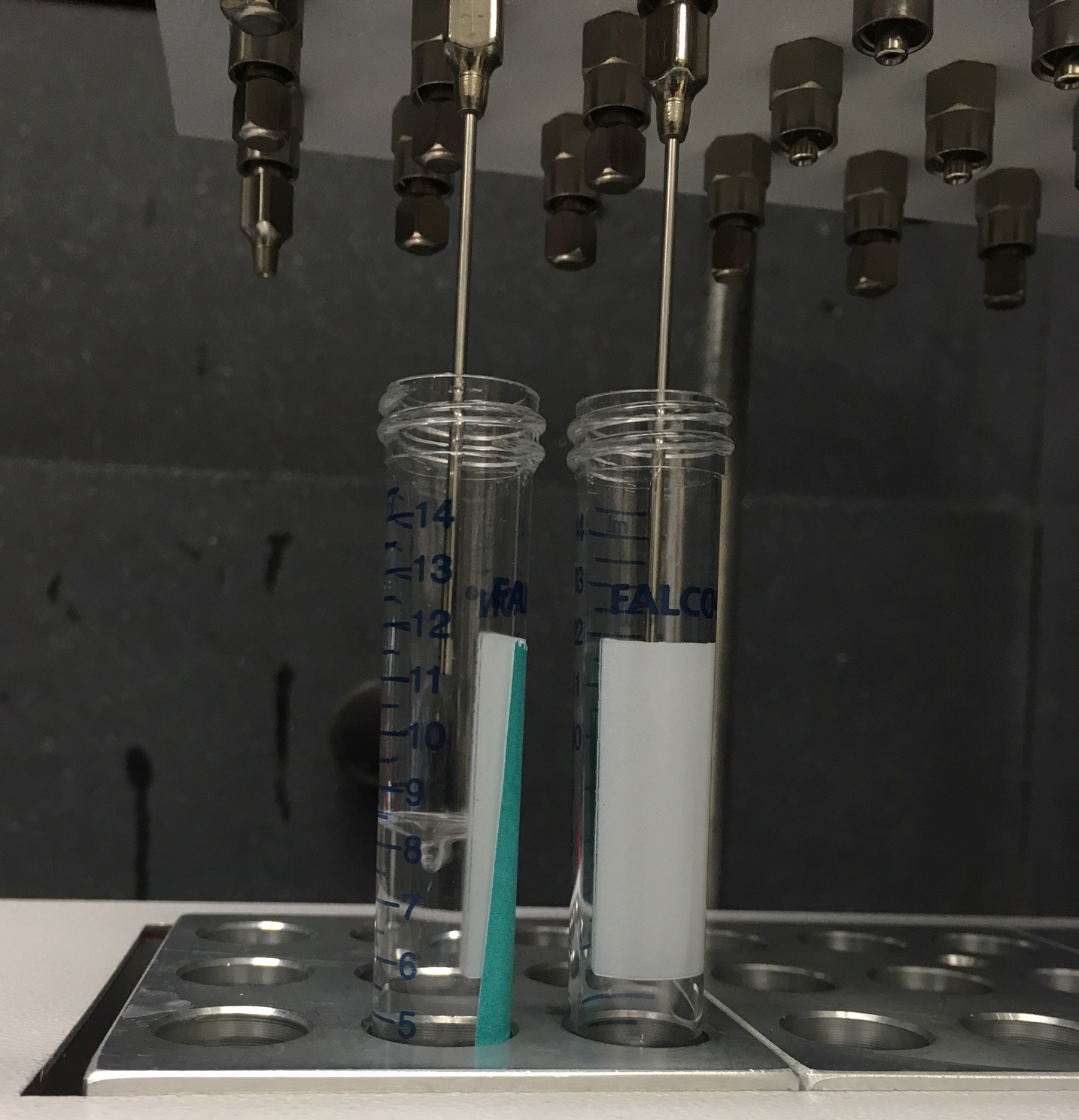

      Figure 1. Needle positioning during nitrogen drying. Surface rippling of the liquid should be observed, but no drops should be splashing to the sides of the tubes.


   2. Yellowish remnants in the tube are normal.
6. Resuspend sample in UltraPure^TM water and acidify to ~pH 4.0 by the addition of 1 M acetate buffer.
   Note: For your first sample, carefully add more acetate buffer as you go and note how much you need, then add the same amount to samples of the same type. For sample evaporated from 1.5 ml, resuspended in 300 µl, amount of acetate buffer needed is approximately 45 µl. Sample can also be resuspended in more water if desired, this will however increase column time in Step 9. For the first test of a certain sample type it is recommended to have more sample for pH testing. To check the pH of your sample using very small amounts, cut a pH test strip lengthwise to about 1/4 of the original width and use 5 µl distributed in drops onto the test fields. Record the amount of sample removed to include in back-calculations. If the samples contain precipitate, centrifuge to remove the precipitate. Particulate matter in the sample may clog the SPE Cartridge (C-18).
7. Put as many C-18 cartridges as samples onto vacuum manifold, close unused outlets.
8. Set vacuum on vacuum manifold to ~4. Prepare SPE (C-18) columns by rinsing with 5 ml methanol followed by 5 ml deionized water. (Drop speed should be ~2/sec). Do not allow the SPE Cartridge (C-18) to run dry until Step 10. The little valves below the cartridge can be used to adjust drop speed/stop cartridge if sample is in danger of running dry.
9. Apply the sample to the SPE Cartridge (C-18) and allow the sample to completely enter the packing material.
10. Wash the column with 5 ml deionized water. Discard the wash. Let column run dry (increase vacuum to get completely dry).
11. Elute the PGE₂ from the column with 5 ml ethyl acetate containing 1% methanol. Make sure valves are from a material not sensitive to this solvent (or, if another type of vacuum manifold using stopcocks is used, remove them and let ethyl acetate enter column by gravity, elute with low vacuum.).
12. Evaporate the ethyl acetate to dryness under a stream of nitrogen as described in Step 5. It is very important that all of the organic solvent be removed as even small quantities will adversely affect the ELISA (takes again about 60-90 min).
13. To resuspend the sample, add 500 μl ELISA Buffer from the ELISA kit, no matter the initial volume. This amount ensures enough buffer in the kit is left for sample dilutions and preparation of other reagents. If more starting material was used, consider this in the sample dilution in Step 14. Vortex. It is common for insoluble precipitate to remain in the sample after addition of ELISA Buffer; this will not affect the assay. This sample is now ready for use in the ELISA.
14. Depending on expected PGE₂ concentrations sample needs to be diluted in ELISA buffer. After systemic inflammasome activation, dilution of 1:100 is recommended.
15. Perform PGE₂ ELISA as described in Chayman chemicals protocol (https://www.caymanchem.com/pdfs/514010.pdf).
16. Perform BCA assay on aliquots of tissue homogenate taken after homogenization of tissue according to kit protocol. Dilute tissue homogenate 1:10 in PBS for assay.
    Note: Make sure to also dilute standards in phosphate homogenization buffer/PBS 1/10.


Data analysis

Back-calculate sample PGE₂ concentration according to the description in the ELISA protocol. Do not forget to account for taking only an aliquot of the spin supernatant.
Calculate the amount of protein in sample according to BCA assay.
Now you can calculate the ratio of PGE₂/mg total protein in your sample.

Notes

1. Load the samples onto the ELISA on the day of extraction, eicosanoids are very unstable, even at -80 °C.
2. Depending on your tissue and eicosanoid production induction, you might have to test for different amounts of tissue used for isolation or different dilutions of sample used in the ELISA.


Recipes

1. Phosphate buffer

   1. Stock: 133 g K₂HPO₄ + 32.15 g KH₂PO₄ in 1 L UltraPure^TM water. The pH should be 7.4.
   2. Dilute 1:10, add 1 mM EDTA + 10 µM Indomethacin right before use. Indomethacin needs to be dissolved fresh at 10 µM in DMSO
2. 1 M acetate buffer

   1. Add 0.93 g sodium acetate and 2.32 g acetic acid to 40 ml UltraPure^TM water, mix
   2. Fill up to 50 ml with UltraPure^TM water

Acknowledgments

This protocol was developed with the help of the Gronert laboratory at UC Berkeley.
Funding: HHMI and NIH grants (AI075039, AI063302, EY026082), Austrian Science Fund (FWF) (the Erwin Schroedinger Fellowship J3789-B22).

Competing interests

The author declares no conflict of interest.

Ethics

The animal experiments complied with the regulatory standards of, and were approved by, the University of California Berkeley Institutional Animal Care and Use Committee.

References

1. Rauch, I., Deets, K. A., Ji, D. X., von Moltke, J., Tenthorey, J. L., Lee, A. Y., Philip, N. H., Ayres, J. S., Brodsky, I. E., Gronert, K. and Vance, R. E. (2017). NAIP-NLRC4 inflammasomes coordinate intestinal epithelial cell expulsion with eicosanoid and IL-18 release via activation of Caspase-1 and -8. Immunity 46(4): 649-659.
