Visualization of Nitric Oxide, Measurement of Nitrosothiols Content, Activity of NOS and NR in Wheat Seedlings

Materials and Reagents

1. 50 ml glass culture tubes without rim (Borosil, catalog number: 9820U08)
2. Scalpel Blade No.10 (Himedia, catalog number: LA76808)
3. Paint Brush (Faber-Castell, size-2)
4. Glass slide (Himedia, catalog number: LA76808) and cover slip (Himedia, catalog number: GW064)
5. Needle (Himedia)
6. Kimwipes^®
7. Moist filter paper
8. Butter paper bags
9. Wheat seed
10. Double distilled water
11. 2-(4-carboxy phenyl)-4,4,5,5-tetramethyl imidazoline-1-oxyl-3-oxide (cPTIO, Sigma-Aldrich, 200 µM, catalog number: C221)
12. Diaminofluorescein-FM (DAF-FM, Sigma-Aldrich, catalog number: D1821)
13. HEPES (Sigma-Aldrich, catalog number: RDD002)
14. Potassium nitrate (KNO₃) (Fischer Scientific, catalog number:13655)
15. N-nitro arginine methyl ester (L-NAME, Sigma-Aldrich, catalog number: N5751)
16. Phosphate buffer 200 mM pH 7.5
17. Sodium nitroprusside (SNP, Sigma-Aldrich, catalog number: BP453)
18. Sodium tungstate (Na-Tungstate, Sigma-Aldrich, catalog number: 14304)
19. NEDD (Sisco Research Laboratories Pvt. Ltd, catalog number: 61166)
20. N-propanol
21. Ammonium Sulfonate (Sisco Research Laboratories Pvt. Ltd, catalog number: 62419)
22. HgCl₂ (Sisco Research Laboratories Pvt. Ltd, catalog number: 25699)
23. Sulfanilamide (Sisco Research Laboratories Pvt. Ltd, catalog number:19689)
24. Ferric-EDTA (Sisco Research Laboratories Pvt. Ltd, catalog no 59389)
25. Assay buffer (Phosphate buffer, 100 mM, pH 7.0)
26. L-Arginine (Sisco Research Laboratories Pvt. Ltd, catalog number: 66637)
27. MgCl₂ (Sisco Research Laboratories Pvt. Ltd, catalog number: 69396)
28. CaCl₂ (Sisco Research Laboratories Pvt. Ltd, catalog number: 70650)
29. BH₄ ((6R)-5,6,7,8-Tetrahydrobiopterin dihydrochloride, Sigma-Aldrich, 100 µM, catalog number: 14304)
30. FAD (Sisco Research Laboratories Pvt. Ltd, catalog number: 87939)
31. FMN (Sisco Research Laboratories Pvt. Ltd, catalog number: 57443)
32. DTT (Sisco Research Laboratories Pvt. Ltd, catalog number: 84834)
33. PMSF (Sisco Research Laboratories Pvt. Ltd, catalog number: 87606)
34. NADPH (Sisco Research Laboratories Pvt. Ltd, catalog number: 77268)
35. Bradford reagent (Genetix Biotech Asia Pvt. Ltd, catalog number: E530-1L)
36. 0.25% HgCl₂ in 0.1 N HCl
37. 7% sulfanilamide in 1 N HCI
38. 100 µM Sodium nitroprusside (prepared in double distilled water)
39. 100 µM Sodium tungstate) (prepared in double distilled water)
40. 0.1% NEDD (prepared in double distilled water)
41. 0.5% Ammonium sulfonate (prepared in double distilled water)
42. 0.2 mM NADPH (prepared in double distilled water)
43. Nitrogen free Hoagland solution (see Recipes)
44. NOS extraction buffer (see Recipes)
45. S-nitrosothiol extraction buffer (see Recipes)
46. HEPES-KOH with pH 7.5 (see Recipes)


Equipment

1. Growth chamber (Conviron, Winnipeg, Canada, model: PGW 36,)
2. Watch glass (Himedia, catalog number: LA025)
3. Mortar and pestle
4. Fluorescence microscope (Zeiss AXIOSKOP 2)
5. UV-visible spectrophotometer (Analytik Jena, Germany, model: Specord Bio-200)
6. Refrigerated centrifuge (Sigma 3K30)
7. Aerator Pump
8. Water bath


Software

1. ImageJ (https://imagej.nih.gov/ij/download.html)
2. MS Excel
3. SPSS 10.0


Procedure

1. Plant growth
   1. Pre-soak the wheat seeds in Petri plates lined with moist filter paper till they germinate for 5 days.
   2. Transfer the uniforms seedlings to 50 ml culture tubes containing nitrogen-free Hoagland solution (Recipe 1). Replenish the Hoagland solution every 3 days (Figure 1). The whole experiment was laid out at National Phytotron Facility, Indian Agricultural Research Institute (IARI), New Delhi in growth chambers (Model PGW 36, Conviron, Winnipeg, Canada).
      Growth condition:
      Temperature: 25 °C/18 °C (day/night)
      Photoperiod: 14 h N/10 h D
      Photon flux density: 500 µmol m^-2 s^-1 (PAR)
      Relative humidity (RH): 90%
      CO₂ concentration: (i) 400 ± 50 µl/l as ambient CO₂ (AC)
                                      n(ii) 750 ± 50 µl/l as elevated CO₂ (EC)



2. Treatments
   1. After 10 days of transfer, replenish the culture tubes with different set of treatments as mentioned in Table 1. Maintain 3 replication for each treatment.
   2. Cover the mouth of test tubes with aluminum foil to avoid effect of volatile chemicals on neighbouring plants (Figure 1). Sodium nitroprusside (SNP), a source of NO; cPTIO, an effective NO scavenger-NAME an inhibitor of nitric oxide synthase, and Na-Tungstate, an inhibitor of NR can be used to understand the impact of No on regulation of NR activity. Detailed description on impact of EC on NO localization and NR activity in combination with SNP and inhibitors are discussed in Adavi and Sathee (2019).

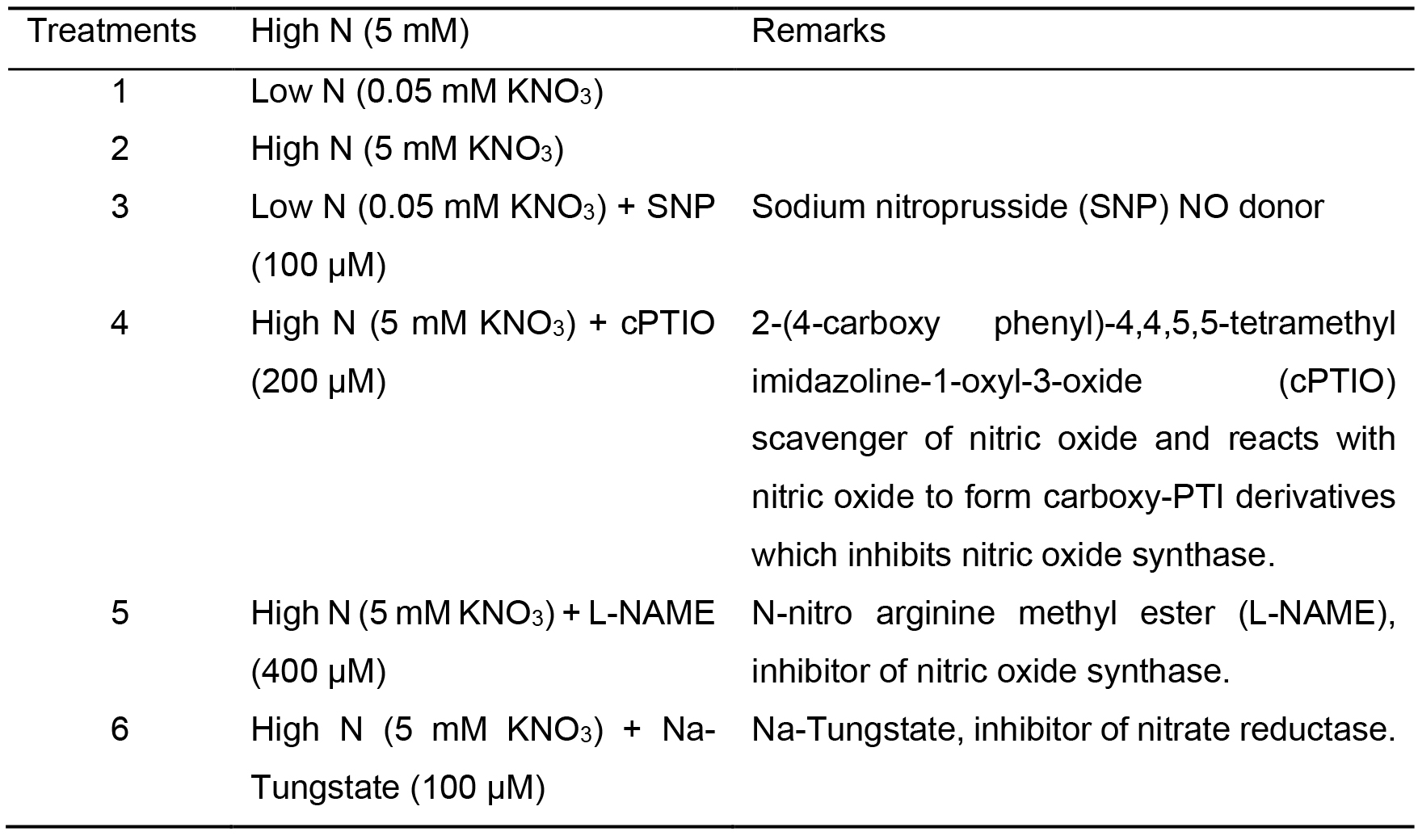

      Table 1. Treatment details

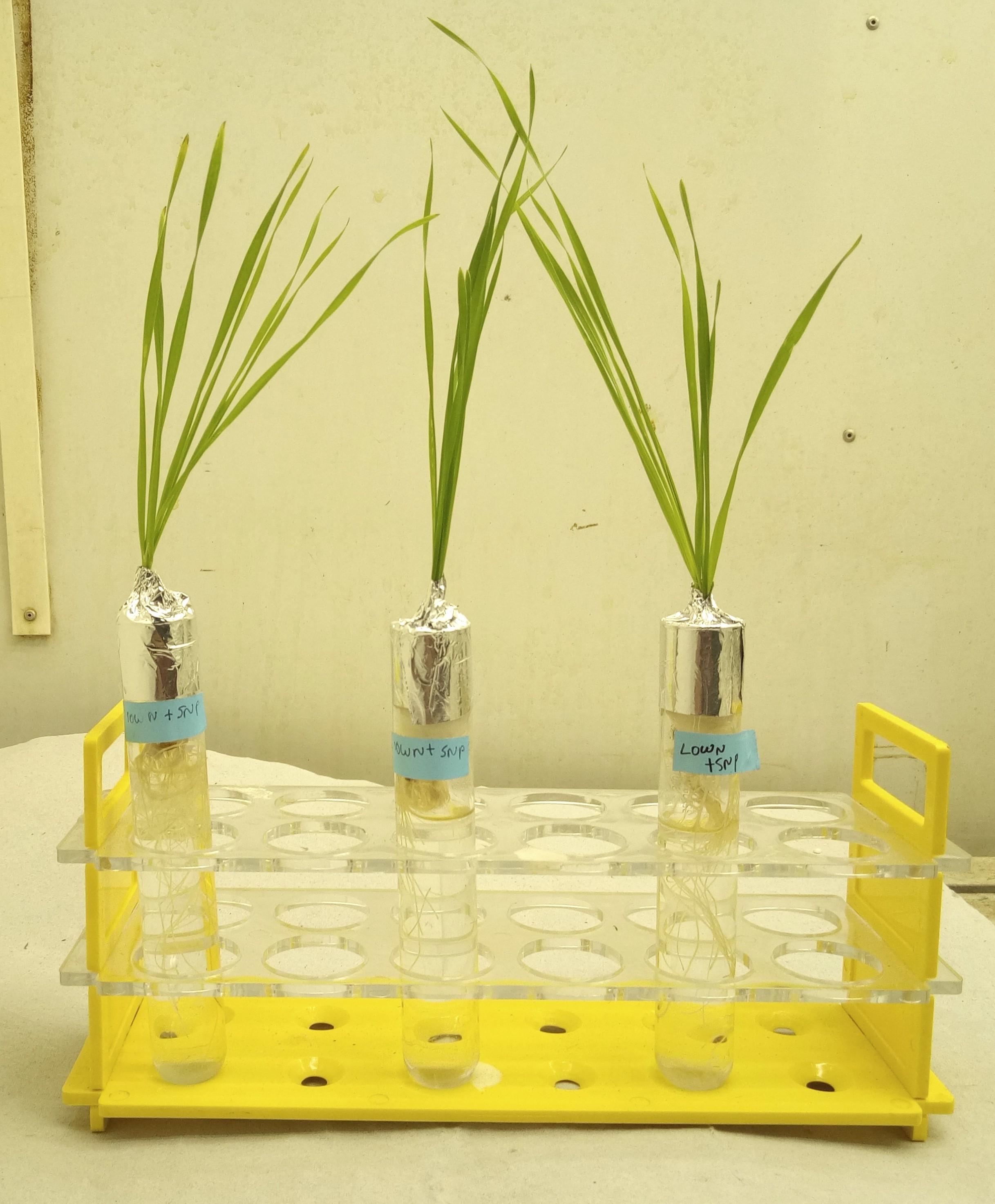

      Figure 1. Representative image of plants grown in 50 ml culture tubes. Each treatment consisted of three tubes with 2 plants per tube.



3. Visualization of NO using fluorescent microscope
   1. After 4 h of treatment, harvest the plants. Cut the root tips into small pieces measuring approximately 2 mm using surgical blade. Then immerse the root sections in the Diaminofluorescein-FM dye (5 µM DAF-FM in 20 mM HEPES-KOH with pH 7.5) in a watch glass for 30 min. After 30 min, carefully take out the root sections and wash with HEPES-KOH buffer without dye 2-3 times till the excess dye is removed.
   2. Transfer the root sections into glass slide carefully with help of paint brush and cover with cover glass. Drain out excess buffer with help of Kim Wipes.
   3. Visualize the slides under a fluorescence microscope (Zeiss AXIOSKOP 2) at 495 nm excitation and 515 nm emission wavelengths and acquire the images (Figure 2).
   4. Analyze the image and calculate the relative fluorescence with “Image J,” a Java-based image processing program.
   5. Set scale bar on the image using “Image J”.


      Figure 2. Representative image of nitric oxide visualized in wheat roots under fluorescent microscope



4. Estimation of Nitrate Reductase (NR) activity
   1. Follow the same procedure for plant growth and treatments as mentioned (Procedures A and B) above. Harvest the plants after 4 h of treatment.
   2. Estimate in vivo nitrate reductase activity by estimating nitrite formed by the enzyme present in cells and nitrite formed is then diazotized using sulphanilamide in acidic medium and NEDD using the method described by Klepper et al. (1971) and modified by Nair and Abrol (1973). Estimate the nitrite amount using Evans and Nason method (1953).
   3. Harvest the plants and store in labeled butter paper bags and keep on ice until weighing. Cut the samples (leaves and roots) into 2 mm pieces and mix thoroughly, weigh 0.3 g and add to ice cold incubation medium containing 3 ml each of phosphate buffer (0.2 M, pH 7.5) and potassium nitrate solution (0.4 M). To this, add 0.2 ml of n-propanol.
   4. Vacuum infiltrate the samples using a pump for 2 min (80-85KPa) and then incubate in a water bath at 30 °C for 30 min under dark conditions.
   5. After incubation, place the tubes in a water bath (70-80 °C) for 3-4 min to stop the enzyme activity and for the complete leaching of nitrite into the medium.
   6. Estimate the amount of nitrite produced by taking adequate amount of aliquot (0.2 ml) in a test tube; to it add 1 ml of sulphanilamide (1% in 1 N HCI). After mixing, add 1 ml NEDD (0.02%) and again mix well. Pink color is formed immediately, and after 20 min make the total volume up to 3 ml with double distilled water.
   7. Measure the absorbance using a UV-visible spectrophotometer (model Specord Bio-200) at 540 nm.
   8. Prepare the calibration curve using standard potassium nitrite solution.
   9. Express the enzyme activity as µmol nitrite formed g^-1 DW h^-1.



5. Estimation of Nitric oxide synthase (NOS) activity
   1. Follow the same procedure for plant growth and treatments as mentioned (Procedures A and B) above. Harvest the plants after 4 h of treatment.
   2. Homogenize 0.5 g of tissue (leaf and root) samples in 5 ml of cold extraction buffer in pre-chilled mortar and pestle. Centrifuge the homogenate at 10,000 x g for 15 min at 4 °C (Hageman and Hucklesby, 1971). Collect the supernatant to carry out enzyme assays. Determine the protein content of the supernatant by following Bradford’ method (1976).
   3. Determine the activity of NOS in the reaction mixture (Gonzalez et al., 2012) containing assay buffer (100 mM phosphate buffer pH 7.0), 1 mM L-Arginine, 2 mM MgCl₂, 0.3 mM CaCl₂, 4 μM BH₄, 1 μM FAD, 1 μM FMN, 0.2 mM DTT, 0.2 mM NADPH with 100 μl of tissue extract.
   4. Observe the change in absorbance due to NADPH utilization at 340 nm for 1 min. Reference was set using reaction mixtures containing distilled water instead of enzyme extract. Three replications of positive control with reaction mixture without L-Arginine was also maintained in each treatment. Use the extinction coefficient of NADPH (ε = 6.22 mM^-1 cm^-1) for calculating NOS activity.



6. Estimation of S-nitrosothiols
   1. Formation of S-nitrosothiols is estimated from leaf and root tissues (Arc et al., 2013). All the steps need to be performed in dark condition. Follow the same procedure for plant growth and treatments as mentioned (Procedures A and B) above.
   2. Homogenize 0.5 g of tissue (leaf and root) samples in 5 ml of cold s-nitrosothiols extraction buffer (Recipe 3) in pre-chilled mortar and pestle. Centrifuge the extract at 13,800 x g for 25 min at 4 °C.
   3. Mix the supernatant with 50 µl ammonium sulfonate and incubate at room temperature for 2 min. Then add 0.3 ml each of sulfanilamide, HgCl₂ and NEDD to the reaction mixture. Keep the reaction mixture under dark condition for 20 min at 30 °C.
   4. Measure the absorbance using a UV-visible spectrophotometer (model Specord Bio-200) at 540 nm.

Data analysis

MS Excel is used for calculations and also to plot the graphs. The least significant difference (LSD at 0.05%) and mean separation using Duncan’s multiple range test was computed by SPSS 10.0. Plants exposed to EC conditions displayed higher accumulation of NO in NOS dependent manner and further details are described in Adavi and Sathee (2019).

Notes

1. Care should be taken to avoid exposure of DAF-FM dye to light, as the dye is light sensitive and may lead to auto-oxidation and false fluorescence.
2. Culture tube mouth should be properly covered with cotton and aluminium foil to avoid effect of volatile chemicals on neighbouring plants.
3. Care should be taken to avoid any damage to root sections while washing or transferring them to slides.
4. During measurement of NR, glasswares should be cleaned properly, rinsed with distilled water and air dried to avoid false color development.


Recipes

1. Nitrogen free Hoagland Solution


   Macronutrient	Molarity (M)	Quantity (ml/L of solution)
   K2SO4	0.5	3.5
   MgSO4·7H2O	1.0	2
   CaCl2	1.0	2
   KH2PO4	1	1
   Micronutrient	Quantity (g/L of solution)
   H3BO3	2.86
   MnCl2·4H2O	1.81
   ZnSO4·7H2O	0.22
   CuSO4·5H2O	0.08
   Na2MoO4·2H2O	0.02

   Add micronutrient solution and 0.5% Ferric-EDTA solution (1 ml each) to one liter of solution of macronutrient and adjust the pH to 6.5 prior to use
2. NOS extraction buffer
   Tris-HCl buffer, 50 mM pH 7.5
   10 mM MgCl₂
   1 mM DTT
   1 mM PMSF
3. S-nitrosothiol extraction buffer
   25 mM HEPES-NaOH
   1 mM EDTA, pH 7.8
4. HEPES-KOH with pH 7.5
   20 mM HEPES was prepared in double distilled water and pH was adjusted to 7.5 with KOH


Acknowledgments

This protocol was adapted from Adavi and Sathee (2019) and our other studies (unpublished). This study was supported by ICAR-Indian Agricultural Research Institute (institute project-CRSCIARISIL20144047279). SAB and BKP acknowledge ICAR- junior research fellowship support received during the course of the study.

Competing interests

The authors declare that there is no conflict of interest.

References

1. Adavi, S. B. and Sathee, L. (2019). Elevated CO₂-induced production of nitric oxide differentially modulates nitrate assimilation and root growth of wheat seedlings in a nitrate dose-dependent manner. Protoplasma 256(1): 147-159.
2. Arc, E., Galland, M., Godin, B., Cueff, G. and Rajjou, L. (2013). Nitric oxide implication in the control of seed dormancy and germination. Front Plant Sci 4: 346.
3. Balcerczyk, A., Soszynski, M. and Bartosz, G. (2005). On the specificity of 4-amino-5-methylamino-2',7'-difluorofluorescein as a probe for nitric oxide. Free Radic Biol Med 39(3): 327-335.
4. Bethke, P. C., Badger, M. R. and Jones, R. L. (2004). Apoplastic synthesis of nitric oxide by plant tissues. Plant Cell 16(2): 332-341.
5. Bogdan, C., Rollinghoff, M. and Diefenbach, A. (2000). The role of nitric oxide in innate immunity. Immunol Rev 173: 17-26.
6. Bradford, M. M. (1976). A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal Biochem 72(1-2): 248–254.
7. Cheng, T., Chen, J., Ef, A. A., Wang, P., Wang, G., Hu, X. and Shi, J. (2015). Quantitative proteomics analysis reveals that S-nitrosoglutathione reductase (GSNOR) and nitric oxide signaling enhance poplar defense against chilling stress. Planta 242(6): 1361-1390.
8. Conrath, U., Amoroso, G., Köhle, H. and Sültemeyer, D. F. (2004). Non‐invasive online detection of nitric oxide from plants and some other organisms by mass spectrometry. The Plant J 38(6): 1015-1022.
9. Correa-Aragunde, N., Lombardo, C. and Lamattina, L. (2008). Nitric oxide: an active nitrogen molecule that modulates cellulose synthesis in tomato roots. New Phytol 179(2): 386-396.
10. de Pinto, M. C., Tommasi, F. and De Gara, L. (2002). Changes in the antioxidant systems as part of the signaling pathway responsible for the programmed cell death activated by nitric oxide and reactive oxygen species in tobacco Bright-Yellow 2 cells. Plant Physiol 130(2): 698-708.
11. Delledonne, M., Zeier, J., Marocco, A. and Lamb, C. (2001). Signal interactions between nitric oxide and reactive oxygen intermediates in the plant hypersensitive disease resistance response. Proc Natl Acad Sci U S A 98(23): 13454-13459.
12. Du, S., Zhang, R., Zhang, P., Liu, H., Yan, M., Chen, N., Xie, H. and Ke, S. (2016). Elevated CO₂-induced production of nitric oxide (NO) by NO synthase differentially affects nitrate reductase activity in Arabidopsis plants under different nitrate supplies. J Exp Bot 67(3): 893-904.
13. Evans, H. J. and Nason, A. (1953). Pyridine nucleotide-nitrate reductase from extracts of higher plants. Plant Physiol 28(2): 233-254.
14. Gonzalez, A., Cabrera Mde , L., Henriquez, M. J., Contreras, R. A., Morales, B. and Moenne, A. (2012) Cross talk among calcium, hydrogen peroxide, and nitric oxide and activation of gene expression involving calmodulins and calcium-dependent protein kinases in Ulva compressa exposed to copper excess. Plant Physiol 158(3):1451-1462.
15. Gupta, K. J., Fernie, A. R., Kaiser, W. M. and van Dongen, J. T. (2011). On the origins of nitric oxide. Trends Plant Sci 16(3): 160-168.
16. Hageman, R. H.and Hucklesby, D. P. (1971). Nitrate reductase from higher plants. In Methods in enzymology. Academic Press 23:491-503.
17. Hung, K. T., Chang, C. J. and Kao, C. H. (2002). Paraquat toxicity is reduced by nitric oxide in rice leaves. J Plant Physiol 159(2): 159-166.
18. Klepper, L., Flesher, D. and Hageman, R.H. (1971). Generation of reduced nicotinamide adenine dinucleotide for nitrate reduction in green leaves. Plant Physiol 48(5): 580-590.
19. Leshem, Y. Y. and Pinchasov, Y. (2000). Non‐invasive photoacoustic spectroscopic determination of relative endogenous nitric oxide and ethylene content stoichiometry during the ripening of strawberries Fragaria anannasa (Duch.) and avocados Persea americana (Mill.). J Exp Bot 51(349): 1471-1473.
20. Nair, T. V. R. and Abrol, Y. P. (1973). Nitrate reductase activity in developing wheat ears. Cell Mol Life Sci 29(12): 1480-1481.
21. Neill, S. J., Desikan, R. and Hancock, J. T. (2003). Nitric oxide signalling in plants. New Phytol, 159(1): 11-35.
22. Sun, A. (2018). The EPR method for detecting nitric oxide in plant senescence. In Plant Senescence. Humana Press pp: 119-124.
23. Tischner, R., Galli, M., Heimer, Y. M., Bielefeld, S., Okamoto, M., Mack, A. and Crawford, N. M. (2007). Interference with the citrulline-based nitric oxide synthase assay by argininosuccinate lyase activity in Arabidopsis extracts. FEBS J 274(16): 4238-4245.
24. Vanin, A. F., Svistunenko, D. A., Mikoyan, V. D., Serezhenkov, V. A., Fryer, M. J., Baker, N. R. and Cooper, C. E. (2004). Endogenous superoxide production and the nitrite/nitrate ratio control the concentration of bioavailable free nitric oxide in leaves. J Biol Chem 279(23): 24100-24107.
25. Xiong, J., Lu, H., Lu, K., Duan, Y., An, L. and Zhu, C. (2009). Cadmium decreases crown root number by decreasing endogenous nitric oxide, which is indispensable for crown root primordia initiation in rice seedlings. Planta 230(4): 599-610.
26. Yaacov, Y. L., Wills, R. B. and Ku, V. V. V. (1998). Evidence for the function of the free radical gas nitric oxide (NO-) as an endogenous maturation and senescence regulating factor in higher plants. Plant Physiol Bioch.36(11): 825-833.
27. Yamasaki, H., Sakihama, Y. and Takahashi, S. (1999). An alternative pathway for nitric oxide production in plants: new features of an old enzyme. Trends Plant Sci 4(4): 128-129.
28. Yamasaki, H., Shimoji, H., Ohshiro, Y. and Sakihama, Y. (2001). Inhibitory effects of nitric oxide on oxidative phosphorylation in plant mitochondria. Nitric oxide, 5(3): 261-270.
29. Ye, Y. Q., Jin, C. W., Fan, S. K., Mao, Q. Q., Sun, C. L., Yu, Y. and Lin, X. Y. (2015). Elevation of NO production increases Fe immobilization in the Fe-deficiency roots apoplast by decreasing pectin methylation of cell wall. Sci Rep 5: 10746.
30. Yun, B. W., Skelly, M. J., Yin, M., Yu, M., Mun, B. G., Lee, S. U., Hussain, A., Spoel, S. H. and Loake, G. J. (2016). Nitric oxide and S‐nitrosoglutathione function additively during plant immunity. New Phytol 211(2): 516-526.
31. Zhang, H., Shen, W. B. and Xu, L. L. (2003). Effects of nitric oxide on the germination of wheat seeds and its reactive oxygen species metabolisms under osmotic stress. Acta Bot Sin 45(8): 901-905.
