Steady-state and Flux-based Trehalose Estimation as an Indicator of Carbon Flow from Gluconeogenesis or Glycolysis

Materials and Reagents

1. For enzymatically estimating steady-state trehalose and glycogen amounts
   1. 15 ml Falcon tubes (Tarsons, catalog number: 546021)
   2. 50 ml Falcon tubes (Tarsons, catalog number: 546041)
   3. 1.5 ml screw cap tubes (Genetix, catalog number: 3744.S.X-A)
   4. 1.5 ml Eppendorf tubes (Tarsons, catalog number: 500010)
   5. 96-well plate (Greiner Bio-One, catalog number: 650180)
   6. Porcine trehalase (Sigma-Aldrich, catalog number: T8778)
   7. Aspergillus niger amyloglucosidase (Sigma-Aldrich, catalog number:10115)
   8. Glucose estimation kit (Sigma-Aldrich, catalog number: GAGO20)
   9. Sodium carbonate (Fisher Scientific, catalog number: 15955)
   10. Acetic acid (Fisher Scientific, catalog number: 11005)
   11. Sodium acetate (Sigma-Aldrich, catalog number: W302406)
   12. Sulfuric acid (Fisher Scientific, catalog number: 29995)

   13. 0.25 M sodium carbonate (50 ml) (see Recipes)
   14. 1 M glacial acetic acid (50 ml) (see Recipes)
   15. 0.2 M sodium acetate, pH 5.2 (50 ml) (see Recipes)
   16. 12 N sulfuric acid (25 ml) (see Recipes)
   17. Rich medium (see Recipes)
   18. Synthetic minimal medium (see Recipes)



2. For MS/MS based trehalose measurements
   1. 50 ml Falcon tubes (Tarsons, catalog number: 546041)
   2. 1.5 ml Eppendorf tubes (Tarsons, catalog number: 500010)
   3. Reverse-phase HPLC column (recommended column: Synergi 4 µm Fusion-RP 80A from Phenomenex, catalog number: 00D-4424-E0)
   4. HPLC grade methanol (Fisher Scientific, catalog number: A456-4)
   5. HPLC grade water (Fisher Scientific, catalog number: W6-4)
   6. [U-¹³C₆] glucose (Cambridge Isotope Laboratories, catalog number: CLM-1396-PK)
   7. [U-¹³C₄] aspartate (Cambridge Isotope Laboratories, catalog number: CLM-1801-H-PK)
   8. Trehalose (Sigma-Aldrich, catalog number: T951)
   9. 100% acetonitrile (Fisher Scientific, A955-4)
   10. Ammonium acetate (Fisher Scientific, catalog number: 17836-50G)
   11. Ethanol (Millipore Sigma, catalog number: 1009830511)
   12. 25% acetonitrile with 5 mM ammonium acetate (see Recipes)
   13. 60% methanol (100 ml) (see Recipes)
   14. 75% ethanol (10 ml) (see Recipes)

Equipment

1. For enzymatically estimating trehalose and glycogen amounts

   1. Shaker incubator for growing cells (Thermo Scientific, model: MaxQ 6000)
   2. Cold centrifuge for 50/15 ml Falcon tubes (Eppendorf, model: 5702R)
   3. Cold high-speed bench top centrifuge for 1.5 ml Eppendorf tubes (Eppendorf, model: 5424R)
   4. Dry heating block or water incubator (at 98 °C, 37 °C) (IKA, model: Dry Block Heater1)
   5. Hybridization oven (or rotatory incubator) (at 37 °C, 57 °C) (Thermo Fisher Scientific, model: 6240)
   6. Plate reader (Molecular Devices, model: SpectraMax M series Multi-mode microplate Reader)


2. For efficient total metabolite extractions from cells
   1. Shaker incubator for growing cells (Thermo Scientific, model: MaxQ 6000)
   2. Rocking platform
   3. 60% methanol dewar (set at -45 °C)
   4. Cold centrifuge for 50 ml Falcon tubes (set at -5 °C) (Eppendorf, model: 5702R)
   5. Cold high-speed bench top centrifuge for 1.5 ml Eppendorf tubes (set at -5 °C) (Eppendorf, model: 5424R)
   6. Vortexer mixer (IKA, model: vortex Genius 3)
   7. Dry heating block or water incubator (at 80 °C) (IKA, model: Dry Block Heater1). Water incubator/bath is better to use
   8. Room temperature high-speed bench top centrifuge for 1.5 ml Eppendorf tubes (Eppendorf, model: 5418)
   9. Vacuum dryer (Eppendorf Concentrator plus, model: 5305000304)


3. HPLC and mass spectrometry
   1. Agilent’s 1290 infinity series UHPLC system
   2. ABSCIEX QTRAP 6500 (in triple-quadrupole mode) or a Thermo Scientific TSQ Vantage Triple Stage Quadrupole Mass Spectrometer
   Note: This protocol requires some knowledge and expertise in mass spectrometry. In this protocol, liquid chromatography coupled to tandem mass spectrometery is used for separation, detection and quantitative measurement of metabolites. For simplicity, all mass parameters as well as HPLC details are provided, and so this can be established easily. Once the methods are established in an LC-MS/MS system, any user (with minimal mass spectrometry knowledge) can use this method.
   HPLC requirements: any HPLC system coupled to an appropriate mass spectrometer would be fine. In our experiments, we have used Agilent’s 1290 infinity series UHPLC system. Here, reverse phase high performance liquid chromatography (HPLC) is performed where Synergi 4 µm Fusion-RP 80A column acts as the stationary phase and gradient of 5 mM ammonium acetate in water and 100% acetonitrile acts as the mobile phase.
   Mass spectrometry requirements: Since the trehalose measurements are quantitative, and a broad range of concentrations of trehalose need to be measured, the mass spectrometer used must be capable of accurate measurements over a broad linear dynamic range. For this, a standard triple-quadrupole type mass spectrometer used in MS/MS mode is recommended, however suitable Orbitrap or Q-TOF (triple quadrupole) mass spectrometers may also be used. In our studies, we have used an ABSCIEX QTRAP 6500 (in triple-quadrupole mode) or a Thermo Scientific TSQ Vantage Triple Stage Quadrupole Mass Spectrometer.


Software

1. Mass spectrometry data analysis software: Thermo Xcalibur software (Qual and Quan browsers) and AB SCIEX MultiQuant software 3.0.1
2. Graphing/plotting software: Microsoft Excel, GraphPad Prism 7 or any other suitable graphing program or R-package


Procedure

1. Enzymatic measurement of trehalose and glycogen to estimate steady-state amounts
   1. For trehalose and glycogen measurements, grow the cells in appropriate medium at 30 °C. The growth medium can be either rich medium (Recipe 8) or synthetic minimal medium (Recipe 9).
   2. Harvest equal number of cells for different samples (~10 A₆₀₀ for yeast cells, as measured using a spectrophotometer, for each estimation of trehalose and glycogen) by transferring the cells to either 15- or 50-ml Falcon tube, centrifuge the tubes quickly at 3,000 x g for 3 min.
   3. Carefully remove the supernatant and wash the cells once with 1 ml of ice-cold water in a 1.5 ml screw cap tube by centrifugation at maximum speed for 15 s.
   4. Carefully remove the supernatant using either the pipette tip or a syringe connected to vacuum.
      Note: This step is important for the removal of residual glucose from the medium. After this step, the cells can be frozen in liquid nitrogen and stored at -80 °C until further use.
   5. Lyse the cells by resuspending the cell pellet in 0.25 ml of 0.25 M sodium carbonate and incubate the tube at 95-98 °C for 4 h.
      Note: The sodium carbonate helps in alkali-based permeabilization of the cells, which allows trehalase and amyloglucosidase enzymes to digest trehalose and glycogen respectively. This step can be done either in the dry heating block or water incubator with occasional mixing of the tubes.
   6. Add 0.15 ml of 1 M glacial acetic acid and 0.6 ml of 0.2 M sodium acetate to the tube to adjust the pH of the solution to 5.2.
      Note: Glacial acetic acid and sodium acetate are added to bring the pH of the cell suspension to an acidic range, since the optimum pH for the trehalase and amyloglucosidase enzymes are ~5.7 and ~5 respectively. Do not mix too vigorously at this step, as there is production of carbon dioxide.
   7. For trehalose and glycogen measurements, add 0.05 U/ml of trehalase enzyme and 1-2 U/ml of amyloglucosidase enzymes respectively. Incubate the tubes overnight with constant rotation in the hybridization oven (or rotatory incubator) at 37 °C for digestion of trehalose and at 57 °C for digestion of glycogen.
   8. Centrifuge the tubes at maximum speed, room temperature for 3 min. Carefully transfer the supernatant to a fresh 1.5 ml Eppendorf tube without disturbing the pellet.
   9. The assay for the glucose released from these digestions using a Glucose (GO) Assay Kit is as per the manufacturer’s protocol. Briefly, transfer either undiluted sample (0.04 ml) or suitably diluted sample (1:1 or 1:4) in triplicates to a 96-well plate. Add 0.08 ml of reconstituted glucose oxidase/peroxidase/o-dianisidine reagent to each well. Incubate the plate at 37 °C for 30 min. Stop the reaction by adding 0.08 ml of 12 N sulfuric acid and read the absorbance at 540 nm in a plate reader. The concentration of released glucose (mg/ml) is determined using the standard curve.



2. Preparing metabolite extracts (to extract trehalose and other metabolites from cells)
   Note: This is shown as the schematic in Figure 2.
   1. Grow the cells in appropriate medium at 30 °C. The growth medium can be either rich medium (Recipe 8) or synthetic minimal medium (Recipe 9). Harvest an equal number of cells for different samples (~6-10 A₆₀₀ for yeast cells using a spectrophotometer) during the logarithmic phase of growth. The volume of the culture to be harvested can range from 5 to 10 ml.
   2. Quench metabolism in the cells for 5 min in 4 volumes of 60% methanol in a 50 ml Falcon tube (maintained at -40 °C to -45 °C).
      Note: Use dry ice to maintain the temperature of the 60% methanol contained in the dewar at -40 °C to -45 °C. Do not cool to below -50 °C as cells will freeze at that temperature. In case, the temperature drops below -50 °C, bring it to -45 °C by pouring 60% methanol maintained at room temperature into the dewar. Once the temperature is set at -40 °C to -45 °C, it is maintained for a while, and therefore stringent temperature controlling methods are not needed at this step.
   3. Centrifuge the tubes at 1,000 x g for 3 min (set at -5 °C).
      Note: Cool all the centrifuges to -5 °C even before harvesting the cells.
   4. Carefully remove the supernatant and then resuspend the pellet in cold 0.7 ml of 60% methanol (maintained at -45 °C).
   5. Transfer the suspension to 1.5 ml Eppendorf tubes and centrifuge this suspension at 1,000 x g for 3 min (set at -5 °C).
      Note: Keep the 1.5 ml Eppendorf tubes chilled by placing them in 60% methanol dewar (set at -45 °C).
   6. Carefully remove the supernatant using a pipette (and not vacuum based aspiration), and resuspend the pellet in 1 ml of 75% ethanol.

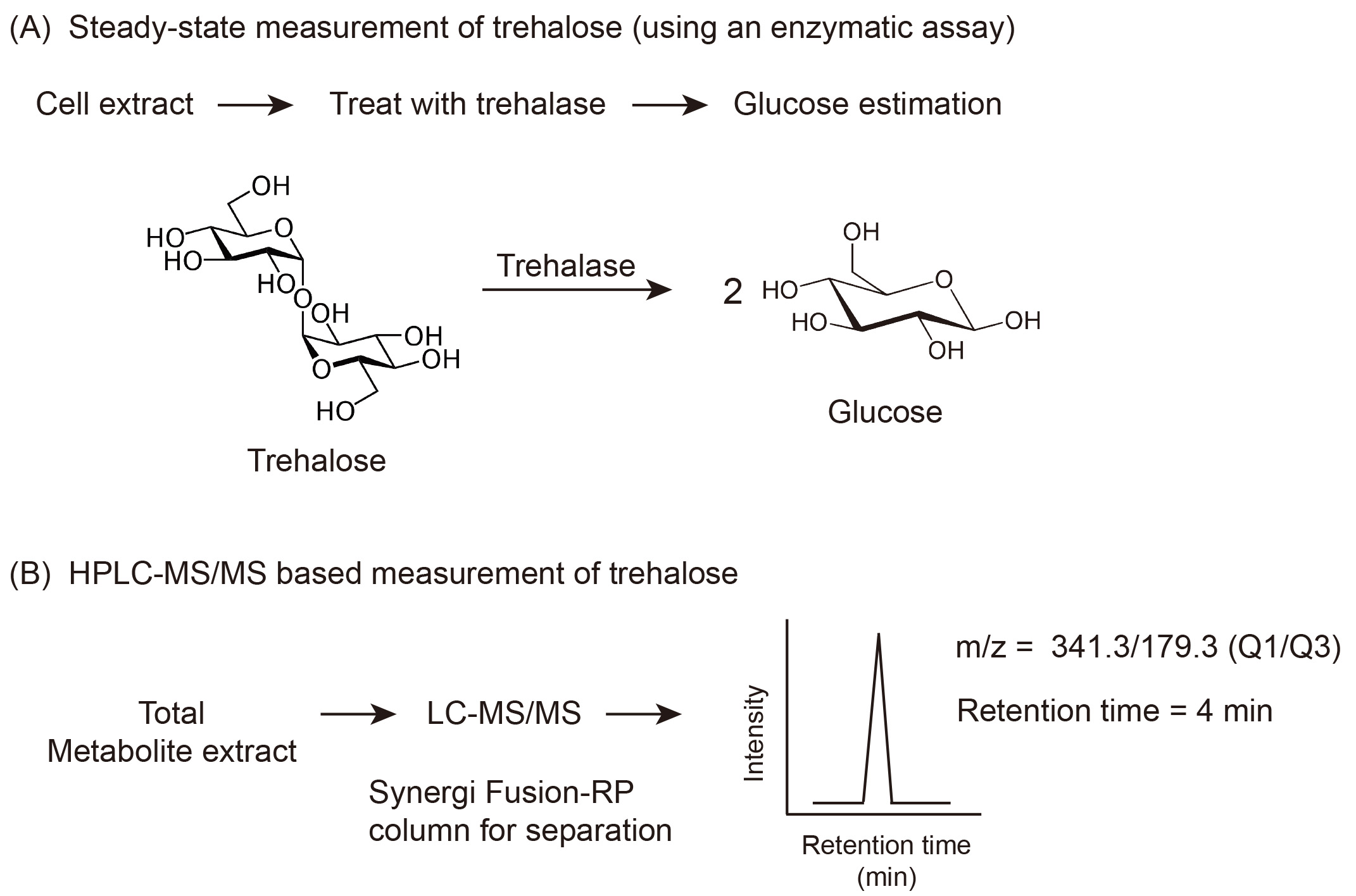

      Figure 2. Steady-state measurements of trehalose using (A) either an enzyme based colorimetric assay or (B) HPLC-MS/MS based analysis. The enzymatic assay is simple and low-cost, and measures total trehalose. The LC-MS/MS based analysis is very sensitive (100-1000 fold higher than the enzyme based assay), and can unambiguously detect and quantify total trehalose in the extracts, and can also be used to differentiate the source of trehalose when used in conjunction with stable-isotope labeling.


   7. Keep the tubes at 80 °C for 3 min, with intermittent vortexing, followed by incubation on ice for 5 min.
   8. Centrifuge the tubes at maximum speed for 1 min at room temperature to pellet the extracted cells.
   9. Transfer 0.96 ml of the supernatant to a fresh 1.5 ml Eppendorf tube, centrifuge again at maximum speed for 10 min at room temperature to pellet any remaining cell debris.
   10. Transfer 0.45 ml of the supernatant to two fresh 1.5 ml Eppendorf tubes.
   11. Dry the supernatant in a vacuum dryer for 3-4 h and then store at -80 °C until further use.


3. Estimating trehalose by LC-MS/MS
   Note: Also see schematic in Figure 2.
   1. Prepare a stock of 0.25-1 µg/ml trehalose solution to be used as a standard in LC-MS/MS. This solution is prepared such that the effective standard concentration used in each LC-MS/MS run is 5-10 ng. Make multiple dilutions of this stock to determine the linear range for trehalose estimation, such that 1-50 ng of trehalose is loaded onto the column.
   2. Use appropriate volumes of the solvent solution (Recipe 7) to dissolve the samples. The solvent volume can range from 0.05 ml to 0.5 ml, depending on the concentration of trehalose in the samples and the linear dynamic range of the mass spectrometer.
      Note: It will be appropriate to dissolve the sample in smaller volumes at first, and then dilute it further if needed.
   3. Resolve metabolite extracts by injecting into the HPLC column, and analyze the metabolites using MS/MS. Measure trehalose using a negative polarity mode in the mass spectrometer. For further details on the buffers, column parameters, flow rate and the gradient, refer to the method described in detail in Walvekar et al., 2018.



4. ¹³C-labeling experiments for flux based trehalose synthesis estimations
   Note: See Figure 3 for a typical labeling experiment workflow.

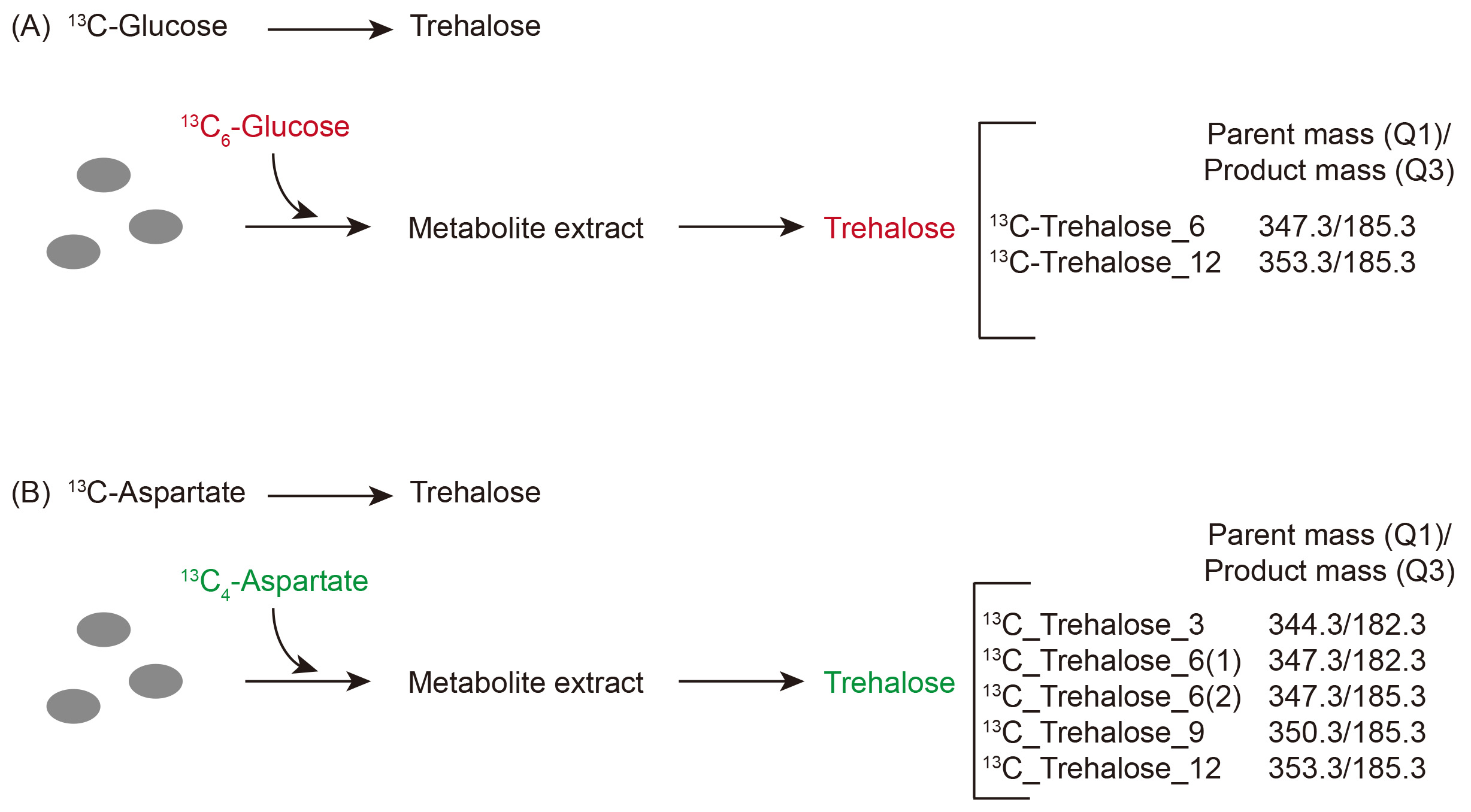

   Figure 3. Workflow for a typical carbon-label based estimation of trehalose synthesis. A. A schematic to show the use of stable-isotope labeled glucose to estimate trehalose synthesis coming from glycolysis (i.e., directly from glucose). B. A schematic to show the use of stable-isotope labeled aspartic acid to estimate trehalose synthesis from gluconeogenesis.

¹³C-glucose labeling (direct incorporation of glucose into trehalose)

1. For experiments to estimate the ¹³C-label incorporation into trehalose from glucose, grow the cells in appropriate medium at 30 °C till the logarithmic phase. Growth medium can be either rich medium (Recipe 8) or synthetic minimal medium (Recipe 9).
2. Add labeled [U-¹³C₆] glucose to the culture to reach a ratio of 50% unlabeled to 50% fully labeled glucose for ~5 min or less on a rocking platform (For cells grown in 2% unlabeled glucose, add 2% labeled glucose).
   Note: Since labeled glucose gets incorporated into trehalose directly, the incubation time with labeled glucose is critical and should be reduced to the minimum possible to avoid saturation of label incorporation into trehalose. This time should be optimized carefully based on preliminary label incorporation measurements.
3. Harvest equal numbers of cells for different samples (~6-10 ml of yeast cells in culture at an A₆₀₀ of ~1) and proceed as described in Step B2.
   Note: During harvesting an equal number of cells, measure the A600 of the culture before spiking in labeled glucose to minimize the delay in time.

¹³C-aspartate labeling (gluconeogenic flux into trehalose)

1. For the ¹³C-label incorporation in trehalose from aspartate, grow the cells in an appropriate medium (containing glycerol/ethanol as carbon source) and collect cells when still in the logarithmic phase.
   Note: Alternatively, cells can be either grown in glucose till late-logarithmic phase (post-diauxic), or low glucose concentrations can also be used, depending on the needs of the experiment.
2. Add labeled [U-¹³C₄] aspartate to a final concentration of 1 mM and incubate for appropriate time.
   Note: The time of incubation with labeled aspartate can be optimized based on the linearity of the label incorporation into trehalose. ~15 min can be used as an earliest time-point since there are multiple steps involved in trehalose synthesis from aspartate via gluconeogenesis.
3. Harvest an equal number of cells for different samples (~6-10 ml of yeast cells at A₆₀₀ ~1) and proceed as described in Step B2.

Normalizing MS/MS data
We recommend using any two of the three approaches listed below, to ensure proper normalization of data coming from different samples. First, prepare all metabolite extracts from equal cell numbers, inject the same volumes into the mass spectrometer, and carry out all runs together. Second, the use of an internal standard added during extractions is strongly recommended. For this, the use of an unnatural disaccharide, or labeled disaccharide (e.g., melibiose) is ideal. Third, estimates of total ion count (for each injection) can be used to normalize the total amounts of samples injected.

Data analysis

1. The area under each metabolite peak is calculated using either appropriate MS software (for example, the Thermo Xcalibur software (Qual and Quan browsers) or AB SCIEX MultiQuant software 3.0.1).
2. For estimating steady-state levels of trehalose, either total peak area or relative peak area can be calculated and plotted for different samples.
3. For estimating trehalose synthesis by flux experiments, either relative label incorporation or percent label incorporation can be calculated and plotted for all the mass isotopomers of trehalose.

Note: For comparing samples, it is easiest to use a relative normalization, i.e., compare amounts of label incorporated in each sample, in relation to any one sample. Here, peak areas in each sample can be divided by the peak area in the control sample. Subsequent visualizations are done by plotting relative changes, using any presentation style of choice.

Recipes

1. 0.25 M sodium carbonate (50 ml)
   1. Weigh 1.32 g of the powder and dissolve in 50 ml sterile water
   2. Filter-sterilize the solution
   3. Store at room temperature (shelf life: several months. Note that Contamination is rare but possible)
2. 1 M glacial acetic acid (50 ml)
   1. To 47.13 ml sterile water, add 2.87 ml of glacial acetic acid
   2. Store at room temperature for several months
3. 0.2 M sodium acetate, pH 5.2 (50 ml)
   1. Weigh 0.82 g of the powder and dissolve in 50 ml sterile water
   2. Adjust the pH and filter sterilize the solution
   3. Store at room temperature (shelf life: several months. Note that contamination is rare but possible.)
4. 12 N sulfuric acid (25 ml)
   1. To 16.7 ml sterile water, add 8.33 ml of sulfuric acid
   2. Store at room temperature (shelf life: several months)
5. 60% methanol (100 ml)


   Water	40 ml
   Methanol	60 ml

   Make it fresh and bring it -45 °C before use
6. 75% ethanol (10 ml)


   Water	2.5 ml
   Ethanol	7.5 ml

   Make it fresh and store at room temperature
7. 25% acetonitrile with 5 mM ammonium acetate (100 ml)


   Acetonitrile	25 ml
   Ammonium acetate	38.5 mg
   Water	75 ml

   Filter sterilize the solution
   Make it fresh for each experiment, and store at room temperature
8. Rich medium
   1% yeast extract
   2% peptone
   2% glucose
9. Synthetic minimal medium
   0.67% yeast nitrogen base
   2% glucose
   with or without amino acids


Acknowledgments

This work was supported in part by a Wellcome Trust–DBT India Alliance intermediate fellowship (IA/I/14/2/501523) to SL, institutional support from inStem, and a Dept. of Science and Technology SERB-NPDF (PDF/2016/000416) to RG. The authors acknowledge the use of the HPLC and mass spectrometry resources in the NCBS/inStem/C-CAMP mass spectrometry facilities.

Competing interests

The authors have no competing interests to declare.
