Analyzing the Quenchable Iron Pool in Murine Macrophages by Flow Cytometry

Materials and Reagents

1. Pipette tips
2. 1.5 ml reaction tubes
3. 50 ml conical centrifuge tubes (Starlab, catalog number: E1450-0200 )
4. 15 ml conical centrifuge tubes (Starlab, catalog number: E1415-0200 )
5. Tissue papers (Tork, catalog number: 290163 )
6. 5 ml serological pipettes (Starlab, catalog number: E4860-0005 )
7. 10 ml serological pipettes (Starlab, catalog number: E4860-0010 )
8. 5 ml round-bottom FACS tubes, for example Falcon^TM Round-Bottom Polystyrene Tubes (Thermo Fisher Scientific, Falcon^TM, catalog number: 352054 )
9. 6-well CytoOne^® Plates, tissue culture-treated (Starlab, catalog number: CC7682-7506 )
10. 24-well CytoOne^® Plates, tissue culture-treated (Starlab, catalog number: CC7682-7524 )
11. 10 cm round CytoOne^® Dish, tissue culture-treated (Starlab, catalog number CC7682-3394 )
12. T-150 CytoOne^® Flask, tissue culture-treated, vented (Starlab, catalog number: CC7682-4815 )
13. Thermo Scientific^TM Sterilin^TM 100 mm Square Petri Dishes (Thermo Fisher Scientific, Thermo Scientific^TM, catalog number: 11349273 )
14. Natural-rubber scraper (Deutsch & Neumann, catalog number: 2260001 )
15. Rapid-Flow^TM sterile disposable filter unit with cellulose nitrate-membrane: 0.2 μm pore size (Thermo Scientific^TM, Nalgene^TM, catalog number: 10261741 )
16. Primary bone marrow-derived macrophages (BMDMs) from C57BL/6J mice: For BMDM cultivation in general, please refer to Bourgeois et al., 2009
17. L929 cell line (ATCC, catalog number: CCL-1 )
18. Purified anti-mouse CD16/32 antibody (BioLegend, catalog number: 101302 )
19. FITC anti-mouse/human CD11b antibody (BioLegend, catalog number: 101205 )
20. PE anti-mouse F4/80 antibody (BioLegend, catalog number: 123110 )
21. Ultra-pure, high quality water, suitable for trace metal analysis (Sigma-Aldrich, catalog number: 14211 )
22. DMEM (Thermo Fisher Scientific, Gibco^TM, catalog number: 11584486 )
23. Fetal calf serum (FCS) (Sigma-Aldrich, catalog number: F7524 )
24. Penicillin/Streptomycin (Sigma-Aldrich, catalog number: P4333 )
25. Phosphate-buffered saline (PBS), Ca²⁺ and Mg²⁺ free, liquid (Sigma-Aldrich, catalog number: D8537 )
26. FeCl₂∙4H₂O (Sigma-Aldrich, catalog number: 220299 )
27. 8-hydroxyquinoline (Sigma-Aldrich, catalog number: H6878 )
28. Calcein-AM (BioLegend, catalog number: 425201 )
29. Dimethyl sulfoxide (DMSO) (Sigma-Aldrich, catalog number: D2438 )
30. Trypsin solution 10x (Sigma-Aldrich, catalog number: 59427C )
31. EDTA disodium salt dihydrate (AppliChem, catalog number: 131669.1211 )
32. Bovine serum albumin (BSA) (Sigma-Aldrich, catalog number: A2153 )
33. Complete DMEM (see Recipes)
34. L929-conditioned medium (see Recipes)
35. BMDM medium (see Recipes)
36. Stock solution preparation of Calcein-AM, FeCl₂ and 8-hydroxyquinoline (see Recipes)
37. Calcein-AM staining solution (see Recipes)
38. FeHQ solution (see Recipes)
39. Trypsin solution (see Recipes)
40. FACS buffer (see Recipes)


Equipment

1. Pipettes, for example Pipetman model (Gilson)
2. Motorized single-channel pipette (Gilson, Pipetman^® Concept 100-1,200 μl)
3. Combined orbital linear shaking water bath (Grant Instruments, model: OLS200 )
4. Laminar flow hood suitable for cell culture, for example Microbiological Safety Cabinets (Szabo-Scandic, SafeFAST Premium 212)
5. CO₂-incubator (Binder, model: CB 170 )
6. Automated cell counter, for example CASY cell counter & analyzer (Roche, model: TTC-2KA-2037 )
7. Refrigerated centrifuge (Hettich, model: Rotina 38R )
8. Refrigerated bench top centrifuge (Peqlab, PerfectSpin 24R Refrigerated Microcentrifuge)
9. Flow cytometer equipped with appropriate lasers and filters for the detection of Calcein fluorescence, for example BD LSRFortessa^TM (BD Biosciences)


Software

1. BD FACSDiva Software (BD Biosciences, Version: 8.0.1)
2. FlowJo Software (FlowJo, Version: 7.6.5)


Procedure

1. BMDM harvest and preparation
   1. For differentiation of primary bone marrow-derived macrophages (BMDMs), cultivate murine bone marrow cells (isolated from one tibia and femur) in BMDM medium and 10 cm square tissue culture dishes for 10 days at 37 °C, 5% CO₂.
      Note: For BMDM cultivation in general, please refer to Bourgeois et al. (2009).
   2. Harvest BMDMs from 10 cm square dishes by gently scraping with a natural-rubber scraper 24 h before the experiment on Day 10 of cultivation and centrifuge at 300 x g, 20 °C for 6.5 min.
   3. Aspirate medium and resuspend the BMDM pellet in 1 ml BMDM medium.
   4. Accurately determine the BMDM cell concentration by using an automated cell counter.
   5. Transfer 2.5 x 10⁵ BMDMs into a 24-well plate, supplied with a total volume of 300 μl BMDM medium.
      Note: Per every experimental condition, at least 3 technical replicates each for untreated and FeHQ-treated BMDMs have to be prepared (in total: minimum 6 x 24-wells/condition). Further, include one replicate of untreated BMDMs as unstained control for flow cytometry analysis.
   6. Incubate BMDMs overnight at 37 °C, 5% CO₂.


2. BMDM stimulation
   1. Stimulate BMDMs with the respective reagent (e.g., LPS, cytokines, bacterial or fungal pathogens) under the desired condition.
   2. Incubate BMDMs at 37 °C, 5% CO₂.


3. BMDM staining and preparation for flow cytometry analysis
   1. Thirty minutes before the end of BMDM stimulation, warm PBS to 37 °C in a water bath, freshly prepare FeHQ solution in sufficient amounts and adjust all required materials for subsequent BMDM staining procedure.
   2. Immediately before the end of the BMDM experiment, prepare the Calcein-AM staining solution and store it in the dark.
      Note: Calcein-AM is highly susceptible for hydrolysis in aqueous buffer solutions. Therefore, to ensure maximal BMDM staining efficiency, work as quick and as accurate as possible from this step on.
   3. Remove the BMDM medium by quickly tilting the 24-well plate onto a stack of tissue papers.
   4. Wash BMDMs 3x with 300 μl pre-warmed PBS and remove the wash solution by quickly tilting the 24-well plate onto the used stack of tissue papers.
      Note: Completely remove FCS-containing cell culture medium, since FCS residuals alter Calcein-AM staining of BMDMs. Always dispose the used stack of tissue papers into the corresponding safety waste.
   5. Add 300 μl Calcein-AM staining solution/well with a motorized single-channel pipet and incubate BMDMs at 37 °C, 5% CO₂ for 15 min.
   6. Remove the Calcein-AM staining solution by quickly tilting the 24-well plate onto a fresh stack of tissue papers.
   7. Wash BMDMs 3x with 300 μl pre-warmed PBS and remove the wash solution by quickly tilting the 24-well plate onto the used stack of tissue papers.
   8. Add 300 μl PBS to BMDMs of the untreated condition and 300 μl FeHQ solution to BMDMs of the FeHQ-treated condition with a motorized single-channel pipet and incubate BMDMs at 37 °C, 5% CO₂ for 30 min.
      Note: BMDM incubation in FeHQ solution longer than 30 min will detrimentally affect BMDM membrane integrity. Therefore, subsequent BMDM harvest and flow cytometry analysis should also be performed as soon as possible.
   9. Remove the solutions by quickly tilting the 24-well plate onto a fresh stack of tissue papers.
   10. Wash BMDMs 3x with 300 μl pre-warmed PBS and remove the wash solution by quickly tilting the 24-well plate onto the used stack of tissue papers
   11. Add 250 μl trypsin solution per 24-well with a motorized single-channel pipet and incubate BMDMs at 37 °C, 5% CO₂ for 5 min.
   12. Place 24-well plate on ice and add 750 μl ice-cold complete DMEM to the wells in order to prevent further trypsinization.
   13. Detach BMDMs by pipetting up and down with a 1,000 μl single-channel pipet, transfer the cell suspension of every technical replicate to a separate 1.5 ml reaction tube and store on ice in the dark.
   14. After harvesting all BMDMs, centrifuge cell suspensions at 400 x g, 4 °C for 5 min.
   15. Aspirate medium, resuspend BMDM pellet in 300 μl FACS buffer and transfer to 5 ml round-bottom FACS tubes.
   16. Process all BMDM samples and store FACS tube on ice in the dark.
   17. Analyze BMDM samples on a flow cytometer equipped with appropriate lasers and filters for the detection of Calcein fluorescence with excitation maximum ~490 nm and emission maximum ~510 nm (Sabnis, 2010) as soon as possible.


Data analysis

1. Using appropriate flow cytometry analysis software, display the samples on a two-dimensional dot plot of FSC-A vs. SSC-A and gate on the BMDM population (Figure 3A).
2. For doublet discrimination, gate on single cells on an FSC-A vs. FSC-H dot plot (Figure 3A).
3. By measuring the unstained control sample, define unstained and Calcein⁺ cells on a Calcein histogram (Figure 3A).
4. Analyze all BMDM samples by recording the Calcein fluorescence.
5. Determine the MFI (Calcein) (median fluorescence intensity) of Calcein⁺ BMDMs.

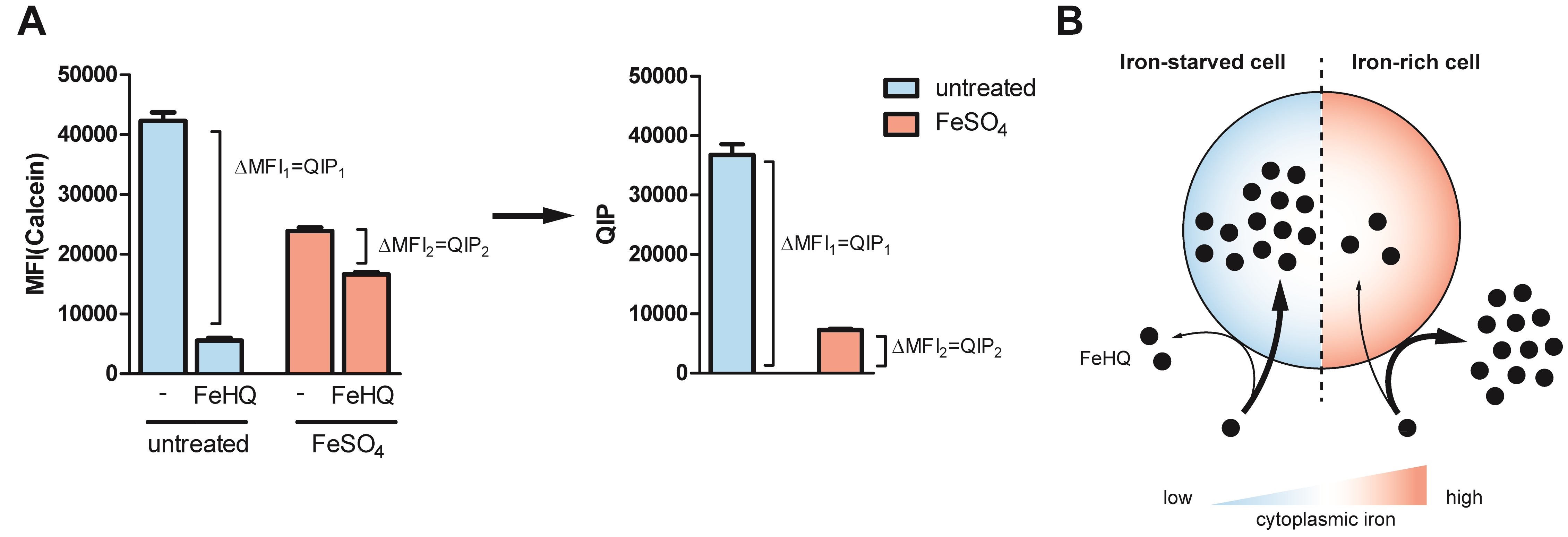

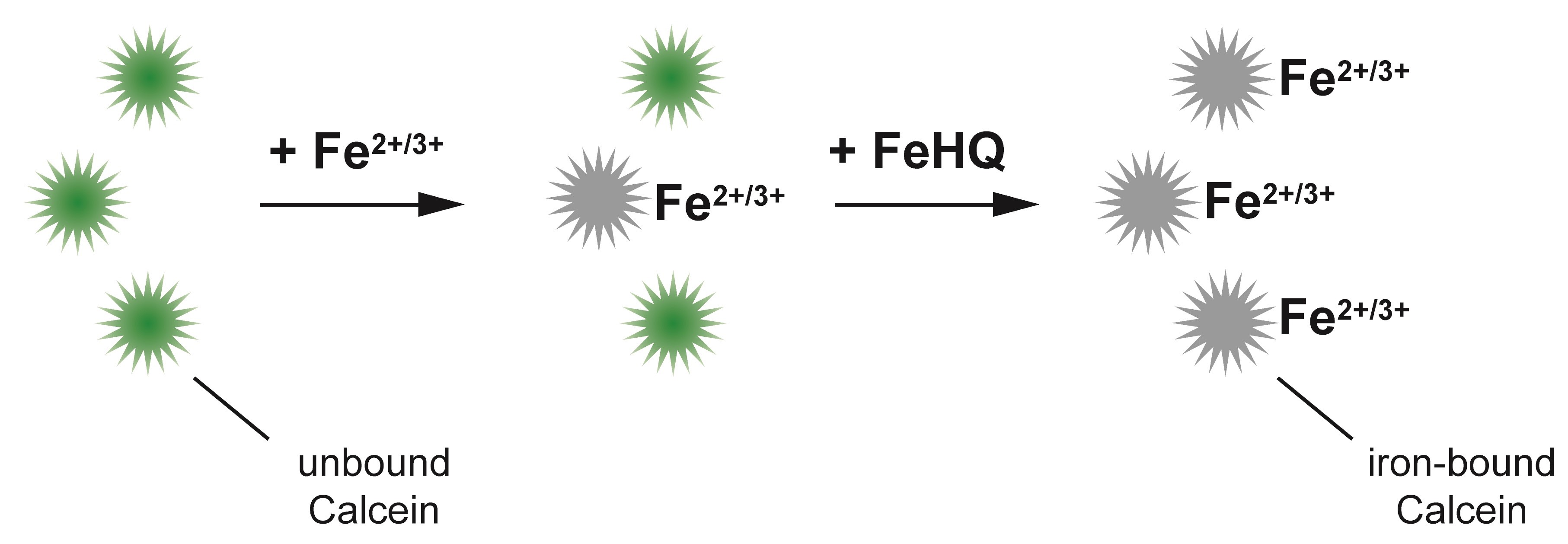

6. Calculate the QIP as difference in MFI (Calcein) between untreated and FeHQ-treated BMDMs per every experimental condition:


   QIP = MFI(untreated cells) - MFI(FeHQ-treated cells)


7. Visualize QIPs of BMDMs at different conditions in a column graph and perform statistical analysis (Figure 3B).

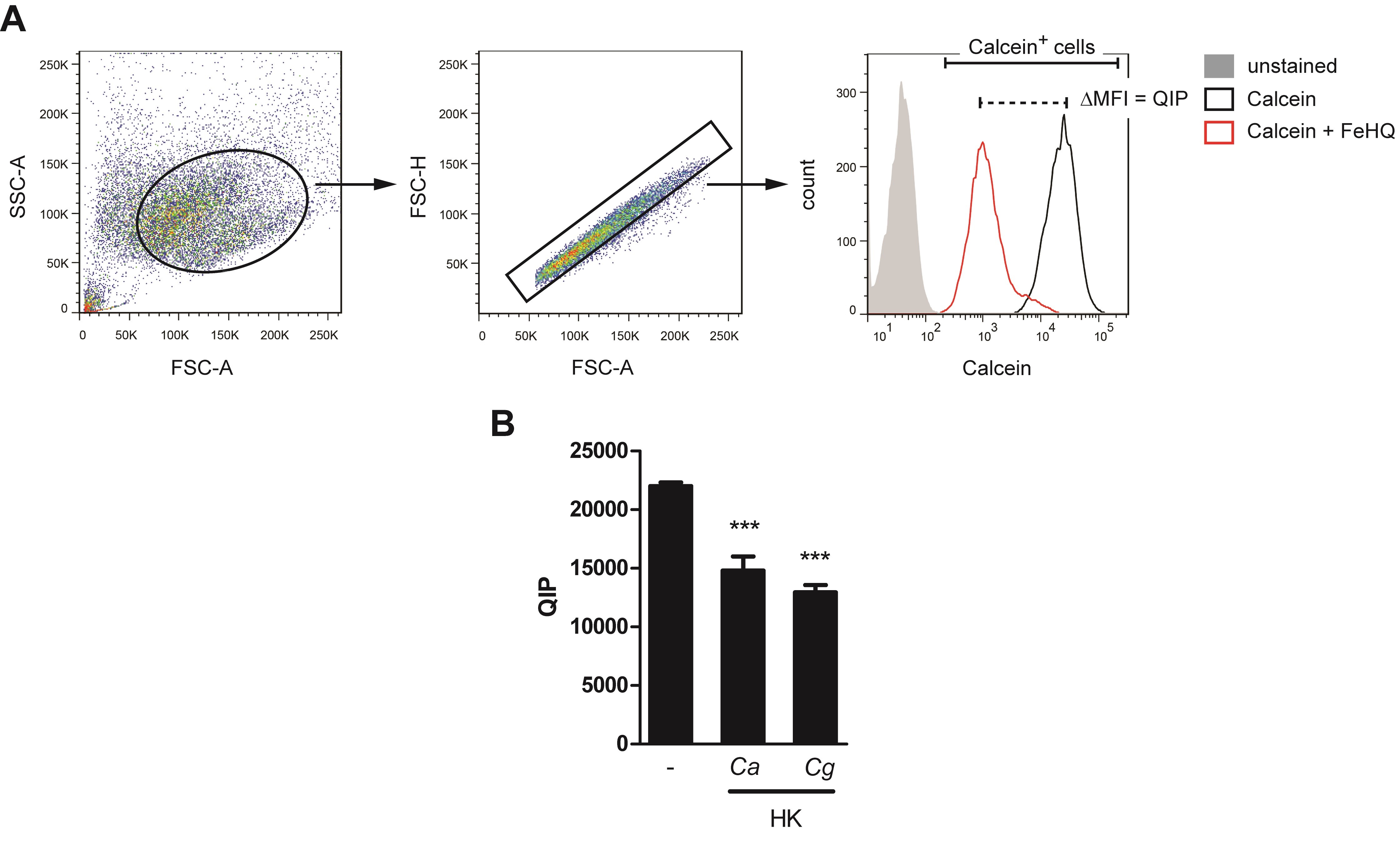

   Figure 3. QIP analysis in BMDMs upon infectious stimuli. A. Gating strategy for QIP analysis. After doublet discrimination on an FSC-A vs. FSC-H dot plot, the MFI (Calcein) of Calcein⁺ cells is recorded. B. BMDMs were infected with a MOI = 5 (pathogen:host cell ratio = 5:1) of heat-killed (70 °C for 10 min) Candida albicans (Ca) or Candida glabrata (Cg) for 12 h and subsequently analyzed for QIP alterations. Thereby, BMDMs upregulated their cytoplasmic iron levels during challenge with Candida spp., owing to the reduced QIPs upon infectious stimuli. MFI, median fluorescence intensity (*** P-value < 0.001).


Notes

1. The FeHQ solution should be adjusted approximately 30 min before BMDM incubation with Calcein-AM staining solution and should be mixed several times in between to ensure adequate complex formation of Fe²⁺ ions and 8-hydroxyquinoline.
2. As mentioned before, the Calcein-AM staining solution should be freshly prepared directly before the end of BMDM stimulation and immediately be used for subsequent BMDM staining owing to the high hydrolysis susceptibility of Calcein-AM in aqueous solutions. For example, 10 min in aqueous buffers decreases the BMDM staining efficiency of Calcein-AM for approximately 50%.
3. Harvested BMDM samples should be analyzed by flow cytometry as soon as possible, since FeHQ loading of BMDMs shows adverse effects on cell membrane integrity upon prolonged storage of already processed samples.
4. This assay is highly accurate and the observed biological effects in BMDMs can be well repeated. However, the general amplitude of QIPs can vary between independent biological experiments, since the QIP is a function of Calcein fluorescence and, therefore, depends on the Calcein-AM staining efficiency of BMDMs.
5. For iron uptake studies into the cytoplasm, BMDMs should only be treated with solutions, for which the iron-containing chemicals have been diluted in ultra-pure, high quality water with minimal trace metal concentrations (e.g., grades suitable for trace element analysis). Otherwise, Fe²⁺/Fe³⁺ will form water-insoluble complexes in phosphate-buffered solutions and, therefore, will distort iron uptake by BMDMs.
6. This protocol can also be applied for other immune cell types in vitro and in vivo. Thereby, aliquots of 1 x 10⁶ from the desired cell type (e.g., non-adherent cells or in vivo cell populations) should be transferred into 1.5 ml reaction tubes and incubated with 200 μl Calcein-AM staining solution respectively FeHQ solution at 37 °C in a bench top thermomixer without agitation in the dark. The number of PBS washing steps in between can be reduced. However, in a pilot experiment, the required final Calcein-AM concentration, FeHQ composition and the incubation time for FeHQ loading should be optimized in detail for every cell type of interest via titration.


Recipes

1. Complete DMEM

   1. Add 10% heat-inactivated fetal calf serum (hiFCS) and 1x Penicillin/Streptomycin to DMEM
   2. Store at 4 °C for up to one month
   Note: For heat inactivation, incubate thawed FCS in a water bath at 56 °C for 30 min and invert FCS bottle every 10 min. hiFCS can be stored in aliquots at -20 °C for up to 6 months.
2. L929-conditioned medium
   Preparation of L929-conditioned medium
   Note: The following protocol for preparation of L929-conditioned medium was described previously (Bourgeois et al., 2009).

   1. Cultivate M-CSF-producing L929 cells in 12 ml complete DMEM and 10 cm round tissue culture dishes until confluency at 37 °C, 5% CO₂
   2. Harvest L929 cells from one 10 cm round tissue culture dish by gently scraping with a natural-rubber scraper and transfer the cell suspension into one T-150 cell culture flask with 80 ml complete DMEM
   3. Incubate L929 cells for 3 days until confluency at 37 °C, 5% CO₂
   4. Aspirate the medium and add 100 ml DMEM per every T-150 cell culture flask
      Note: At this step, it is crucial to use DMEM (without hiFCS) instead of complete DMEM (supplemented with hiFCS).
   5. Incubate L929 cells for 10 days at 37 °C, 5% CO₂
   6. Harvest the supernatants and filter them through a sterile disposable filter unit
   7. Store 50 ml aliquots at -20 °C for up to 12 months


   Testing of L929-conditioned medium

   1. Cultivate murine bone marrow cells in 3 ml complete DMEM with increasing concentrations of L929-conditioned medium (0-20%) in 6-well plates and incubate for 8 days at 37 °C, 5% CO₂
      Note: L929-conditioned medium from previous, already tested batches (or commercially available recombinant M-CSF) can be used as positive control for macrophage differentiation.

   2. Harvest adherent BMDMs by trypsinization and determine cellular yield of BMDMs by using an automated cell counter
   3. Incubate BMDMs with antibodies against CD16/32 and macrophage-specific cell surface markers (e.g., CD11b, F4/80) to verify macrophage differentiation by FACS analysis
      Note: BMDM differentiation via cultivation of bone marrow cells in L929-conditioned medium yields ~98% CD11b⁺ F4/80⁺ macrophages.

   4. Deduce from cellular yield and FACS analysis the optimal concentration of L929-conditioned medium for BMDM differentiation
3. BMDM medium

   1. Add 15% L929-conditioned medium to complete DMEM
   2. Store at 4 °C for up to one month
4. Stock solution preparation

   1. For Calcein-AM stocks, dissolve 50 μg solid Calcein-AM in 50 μl anhydrous DMSO to prepare a 1 mM stock. Freeze aliquots in amber reaction tubes at -20 °C protected from light for up to 4 months. Avoid multiple freezing/thawing cycles
   2. For FeCl₂ stocks, dissolve FeCl₂ in ultra-pure, high quality water and freeze 1 mM stocks at -20 °C
   3. For 8-hydroxyquinoline stocks, dissolve 8-hydroxyquinoline in anhydrous DMSO, prepare 200 μM stocks by dilution with PBS and store aliquots at -20 °C
5. Calcein-AM staining solution

   1. Dilute 1 μl of 1 mM Calcein-AM stock (f.c. 1 μM) in 1 ml PBS, vortex and store the solution in the dark until use
   2. Immediately incubate BMDMs in freshly prepared Calcein-AM staining solution to ensure maximum BMDM staining efficiency
6. FeHQ solution

   1. Add 5 μl of 1 mM FeCl₂ (f.c. 5 μM) to 945 μl PBS and vortex
   2. Subsequently, add 50 μl of 200 μM 8-hydroxyquinoline (f.c. 10 μM) and vortex
   3. Until BMDM treatment, mix FeHQ solution every 10 min to ensure adequate complex formation of Fe²⁺ ions and 8-hydroxyquinoline
7. Trypsin solution

   1. Add 500 μl of 10x trypsin to 4.5 ml PBS and 100 μl of 500 mM EDTA (pH = 8.0)
      Note: For trypsinization in general, it is crucial to use Ca²⁺ and Mg²⁺ free PBS.

   2. Incubate trypsin solution in a water bath at 37 °C until use
8. FACS buffer

   1. Dissolve 0.5 g BSA (f.c. 1%) in 50 ml PBS
   2. Filter-sterilise and store FACS buffer at 4 °C for up to 1 month
