DigiTAG–a RNA Sequencing Approach to Analyze Transcriptomes of Rare Cell Populations in Drosophila melanogaster

Materials and Reagents

1. Hardshell 96-Well PCR Plate, low profile, thin wall, skirted, white/clear (Bio-Rad, catalog number: HSP9601 )

2. Microseal ‘B’ PCR Plate Sealing Film, adhesive, optical (Bio-Rad, catalog number: MSB1001 )

3. Refrigerated centrifuge

4. DNA LoBind tubes 1.5 ml (Eppendorf, catalog number: 0030108051)

5. Filter tips for micropipettes

6. Drosophila

7. Trizol^TM LS (ThermoFisher Scientific, catalog number: 10296028 ) (Storage: 4 °C until expiration date)

8. Nuclease-free Water (ThermoFisher Scientific, catalog number: AM9932 ) (Storage: Room temperature until expiration date)

9. Invitrogen^TM GlycoBlue^TM Coprecipitant (ThermoFisher Scientific, catalog number: AM9515 ) (Storage: -20 °C until expiration date)

10. Chloroform (Sigma-Aldrich, catalog number: C2432 , handle in fume hood!)

11. 70% and 75% ethanol, prepared from absolute Ethanol (Sigma-Aldrich, catalog number: 32205 , store at room temperature in fireproof cabinet), diluted with Nuclease-free water.

12. Isopropanol (Sigma-Aldrich, catalog number: 278475 , store at room temperature in fireproof cabinet)

13. Oligo(dT)₂₀ (50 μM) (ThermoFisher Scientific, catalog number: 18418020 ) (Storage: -20 °C until expiration date)

14. dNTPs (10 mM each) (ThermoFisher Scientific, catalog number: R0193 ) (Storage: -20 °C until expiration date)

15. 5x First Strand Buffer, DTT (100 mM) and SuperScript III (200 U/μl) are all part of the kit: SuperScript^TM III Reverse Transcriptase (ThermoFisher Scientific, catalog number: 18080093 ) (Storage: -20 °C until expiration date)

16. MgCl₂ (25 mM) (ThermoFisher Scientific, catalog number: R0971 ) (Storage: -20 °C until expiration date)

17. RNaseOUT (40 U/μl) (ThermoFisher Scientific, catalog number: 10777019 ) (Storage: -20 °C until expiration date)

18. 5x Second Strand Buffer (ThermoFisher Scientific, catalog number: 10812014 ) (Storage: -20 °C until expiration date)

19. RNase H (5 U/μl) (ThermoFisher Scientific, catalog number: EN0202 ) (Storage: -20 °C until expiration date)

20. DNA Polymerase I (10 U/μl) (ThermoFisher Scientific, catalog number: 18010017 ) (Storage: -20 °C until expiration date)

21. AMPure XP Beads (Beckman Coulter, catalog number: A63880 ) (Storage: 4 °C until expiration date)

22. EB Buffer (Qiagen, catalog number: 19086 ) (Storage: Room temperature until expiration date)

23. 2x Phusion HF master mix (ThermoFisher Scientific, catalog number: F531S ) (Storage: -20 °C until expiration date)

24. TDE Tagment DNA buffer and TDE1 Tagment DNA enzyme are all part of the kit: Illumina Tagment DNA TDE1 Enzyme and Buffer Kits (Illumina, catalog number: 20034197 ) (Storage: -20 °C until expiration date)

25. 20x Eva Green (Biotum, catalog number: 31000 ) (Storage: -20 °C until expiration date)

26. Nextera PCR, modified Index one and Index two primers are all part of the kit: Nextera DNA Library Preparation Kit (24 samples) (Illumina, catalog number: FC-121-1030 ) (Storage: -20 °C until expiration date)

27. Real-Time Standard 1-4 are all part of the kit: KAPA Real-time Library Amplification kit (KAPA Biosystems, catalog number: KK2709 ) (Storage: -20 °C until expiration date)

Equipment

1. Touch Real-Time PCR Detection System (Bio-Rad, model: CFX96 )

2. Thermomixer Compact with 1.5 ml block (Eppendorf, model: Thermomixer Compact )

3. Magnet rack (Fisher Scientific, Invitrogen^TM DYNAL^TM DynaMag^TM Dynabeads^TM DynaMag-2 Magnet, catalog number: 10723874 )

4. 0.2-2 μl micropipette

5. 10-100 μl micropipette

6. 20-200 μl micropipette

7. 100-1,000 μl micropipette

Software

1. CFX Maestro^TM Software (Bio-Rad)

Procedure

1. Isolation of cells-of-interest

   The cell type-of-interest can be isolated through various different methods. For Drosophila neuroblasts, isolation by flow cytometry is recommended. Briefly, Drosophila brain cells as for example type II neuroblasts cells are labeled using fluorophore-expressing driver lines (e.g., worniu-GAL4, ase-GAL80, UAS-CD8::GFP for type II neuroblasts). Brains are manually dissected and dissociated using enzymatic treatment followed by mechanical disruption. Single-cell suspensions are then subjected to flow cytometry. Neuroblasts identified as a separate cell population, which includes the largest GFP positive cells, are isolated and either stored at -80 °C in Trizol^TM or immediately used for RNA isolation. For a step-by-step protocol see Harzer et al. (2013).




2. RNA isolation

   1. Collect a minimum of 100 and up to 10⁵ cells of interest with a minimal estimated volume of ~524 μm³ (or ~10μm of diameter) per cell (e.g., type II Neuroblasts) by FACS directly into 750 μl of Trizol^TM LS in a 1.5 ml DNA LoBind tube.
      Importantly, using less than this amount of initial material will lead to a significantly lowered power to detect transcripts. We advise users experimenting on other cell types to adjust the minimal number of cells proportionally in consideration with their cells-of-interest estimated volume.
   2. Adjust the total volume of each sample to 1 ml with Nuclease-free Water.
   3. Add 1 μl of GlycoBlue^TM Coprecipitant (15 mg/ml) to allow low amount of RNA to be recovered from the RNA extraction.
   4. Mix by inverting the tubes 4-6 times.
   5. Optional: store your samples at -80 °C for up to one month.
   6. Add 200 μl of ~100% pure chloroform (safety note: handle chloroform in fume hood).
   7. Vortex the tubes for 15 s.
   8. Incubate for 2 min at room temperature.
   9. Centrifuge the samples at maximal speed (~24,000 x g) for 15 min at 4 °C in a refrigerated centrifuge.
   10. Carefully aspirate most of the upper aqueous phase (leave a small fraction to prevent unwanted contamination from the organic phase) preferably with a 20-200 μl micropipette, and transfer it into a new 1.5 ml DNA LoBind tube.
   11. Add 500 μl of ~100% pure isopropanol to precipitate the RNA.
   12. Incubate the samples for 15 min at -20 °C to optimize RNA precipitation.
   13. Optional: keep your samples at -20 °C for up to one week.
   14. Vortex the tubes for 15 s.
   15. Centrifuge the samples at maximal speed (~24,000 x g) for 15 min at 4 °C in a refrigerated centrifuge.
   16. Carefully remove all the supernatant.
   17. Add 1 ml of ice-cold 75% ethanol to improve the purity of the RNA pellet.
   18. Vortex the tubes for 15 s.
   19. Centrifuge the samples at maximal speed (~24,000 x g) for 15 min at 4 °C in a refrigerated centrifuge.
   20. Carefully remove all the supernatant.
   21. Remove the very last drop of liquid from each tube with a micropipette but importantly do not let the RNA pellet dry (it will prevent its subsequent solubilization).
   22. Resuspend the RNA pellet in 7 μl of EB Buffer. Such a low volume is required to enable subsequent reactions to be performed on the whole sample in the situation when the minimal amount of cells was used for the sample’s preparation.




3. Reverse Transcription

   1. In order to synthesize the first strand of cDNA, add the following reagents to the 7 μl of RNA:
      1 μl of oligo(dT)₂₀ (50 μM)
      1 μl of dNTPs (10 mM each)
      4 μl of 5x First Strand Buffer
      4 μl of MgCl₂ (25 mM)
      2 μl of DTT (100 mM)
      0.5 μl of RNaseOUT (40 U/μl)
      0.5 μl of SuperScript III (200 U/μl)
   2. Mix well and spin down.
   3. Incubate 50 min at 50 °C and then 5 min at 85 °C.




4. Second Strand Synthesis

   1. In order to degrade the RNA strand and synthesize a second strand of cDNA instead, add the following reagents to the first strand reaction and mix well:
      5 μl of 5x Second Strand Buffer
      3 μl of dNTPs (10 mM each)
      2 μl of RNase H (5 U/μl)
      1 μl of DNA Polymerase I (10 U/μl)
      19 μl of Nuclease-free Water
   2. Incubate 2.5 h at 16 °C. The sample contains now double-stranded cDNA.
   3. Optional: store your samples at 4 °C for up to one day.




5. DNA Purification

   1. To purify double-stranded cDNA molecules from the previous reaction mixes, add 90 μl of well-suspended AMPure XP Beads.
   2. Mix by pipetting 10 times. The reaction turns brownish due to the color of the beads. A homogenous color indicates that the reaction is well mixed (Figure 2).

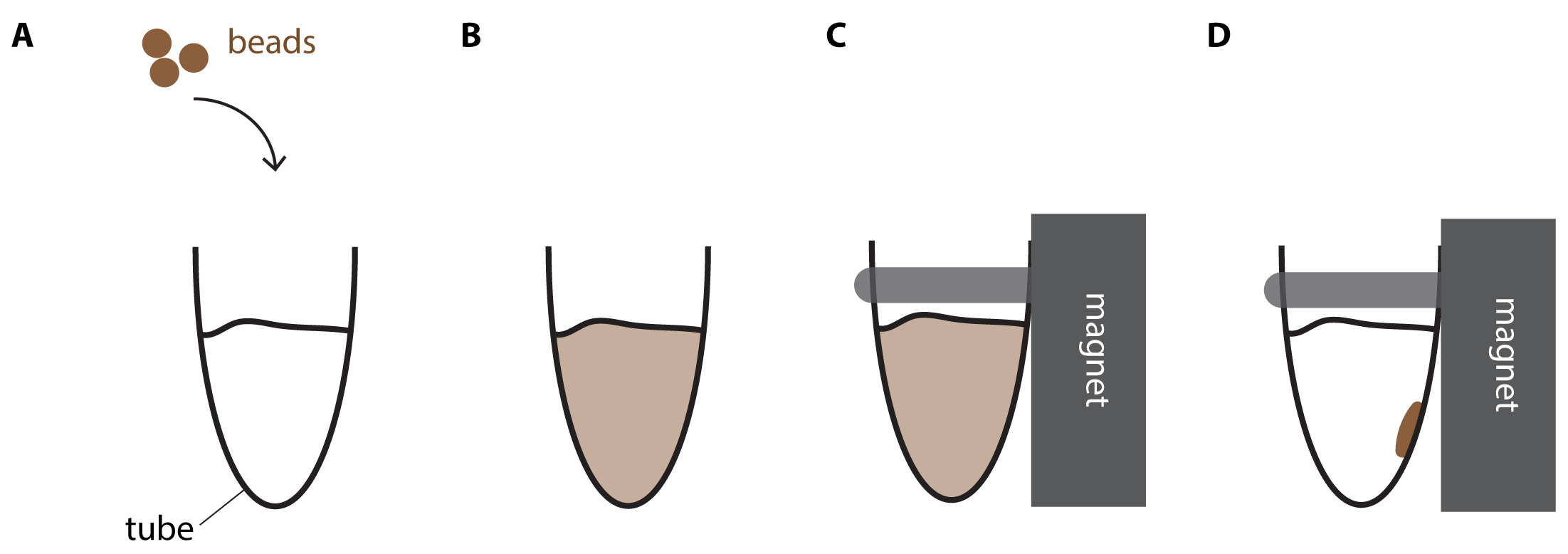

      Figure 2. DNA purification using magnetic beads. A. Brownish beads are added to the reaction mix. B. After thoroughly mixing the reaction turns homogenously brown. C. Tube is placed into the magnet rack. D. Shortly after, the reaction mix becomes clear and the brown beads accumulate at the wall closest to the magnet.


   3.  Incubate for 5 min at Room-Temperature.
   4.  Put the samples on a magnet rack. Wait 2-3 min or until all beads have migrated to the wall of the tube closest to the magnet (Bead migration is completed when brown beads accumulate clearly visible on the wall of the tube next to the magnet and the reaction is cleared and thus appears transparent, see also Figure 2).
   5. Wash twice with 70% ethanol while leaving the tube on the magnet rack. Take care not to disturb the beads. If the pellet of beads is disturbed, wait for 1-2 min to let the beads migrate again to the tube’s wall close to the magnet.
   6. After washing remove all ethanol using a pipette and let all ethanol evaporate for 2 min at Room-Temperature.
   7. Remove samples from magnet and elute the DNA by resuspending the beads in 15.5 μl of EB buffer by pipetting up and down. Wait one min and place the tubes back on the magnetic rack for 2-3 min to allow all beads to migrate to the wall of the tube closest to the magnet. Transfer 15 μl of the completely cleared eluate to a new DNA low binding 1.5 ml tube.





6. Tagmentation

   1. In order to uniquely tag each double-stranded DNA molecule, add on ice the following reagents to the15 μl of double-stranded and purified cDNA from Step E7, and mix:
      15 μl of TDE Tagment DNA buffer
      0.2 μl of TDE1 Tagment DNA enzyme
   2.  Incubate 5 min at 55 °C.
   3.  Purify using 54 μl of AMPure XP beads (see Procedure E. DNA Purification).
   4. Elute in 20 μl EB Buffer.




7. PCR amplification

   1. In order to amplify each uniquely tagmented double-stranded DNA molecule to the concentrations required for RNA-sequencing, add the following reagents to the 19.5 μl of tagmented and purified double-stranded cDNA from Step F4 in a single well of a 96-Well qPCR plate and mix well:
      25 μl of 2x Phusion HF master mix
      2.5 μl 20x Eva Green
      1 μl of Nextera PCR primers (10 μM each)
      1 μl of Nextera modified Index one primers (“N7XX”; includes a random 8-mer tags for barcoding; 0.5 μM each)
      1 μl of Nextera Index two primer (“N501-506”, for multiplexing; 0.5 μM)
   2. Include the four Real-Time fluorescent Standards in duplicates by directly pipetting 50 μl from each Real-Time fluorescent Standards’ tube in separated wells of the qPCR plate.
   3. Incubate in a CFX96 Touch Real-Time PCR Detection System:

      1. 3 min at 72 °C
      2. 30 s at 98 °C
      3. 10 s at 98 °C
      4. 30 s at 63 °C
      5. 3 min at 72 °C (plate read)
      6. Repeat steps c) to e) up to 25 times (see also Step G5)

   4. Use the “no baseline subtraction” setting (in User Preference Settings in the Bio-Rad, CFX Maestro^TM Software) in order to monitor raw fluorescence amplifications in parallel to the unchanging Real-Time Fluorescent Standards.
   5. Stop the PCR reaction right after plate read (3.e) and before denaturation (3.c) when an optimal amplification is reached (when the curve reaches a fluorescence level between standard 2 and standard 4; stopping the reaction at this point is key to reach a compromise between sufficient specific amplification of the sample libraries and minimized amplification of non-specific PCR products such as primers dimers) and recover the samples in 1.5 ml DNA LoBind tubes on ice. Optimal amplification is typically reached after 18 to 20 cycles when using a starting material of 100 Neuroblasts or after 14 to 15 cycles when using a starting material of 1,000 Neuroblasts.
   6. Purify using 90 μl of AMPure XP beads (see Procedure E. DNA Purification).
   7. Elute in 20 μl EB buffer and send for 50 base-pair Illumina Single-end sequencing. Prior to sending to sequencing, the quality of libraries can be checked by performing quantitative PCR on a house-keeping gene and the resulting amplification should be comparable to an amplification performed in the same settings, using the same DNA amount from a reference cDNA sample (for example, from a whole-tissue extraction).


Data analysis

1. Summary of the analysis

   Most critical analysis steps are the following (see also Figure 3): In a first step, sequencing reads are aligned to the genome. Ribosomal RNA reads are subtracted from all aligned reads. Next, reads that arose due to biased amplification (in the step shown in Figure 1B) are identified using the molecule-specific barcode. At each position in the genome the different barcodes are counted. Reads sharing the same barcode are marked as “duplicated reads”. Only the read with the highest quality (this can be assessed with the PHRED score) is kept while all others are removed. The aligned and deduplicated reads are then counted and polyA-containing transcripts are subjected to a differential expression analysis (for example DESeq, Anders and Huber, 2010).

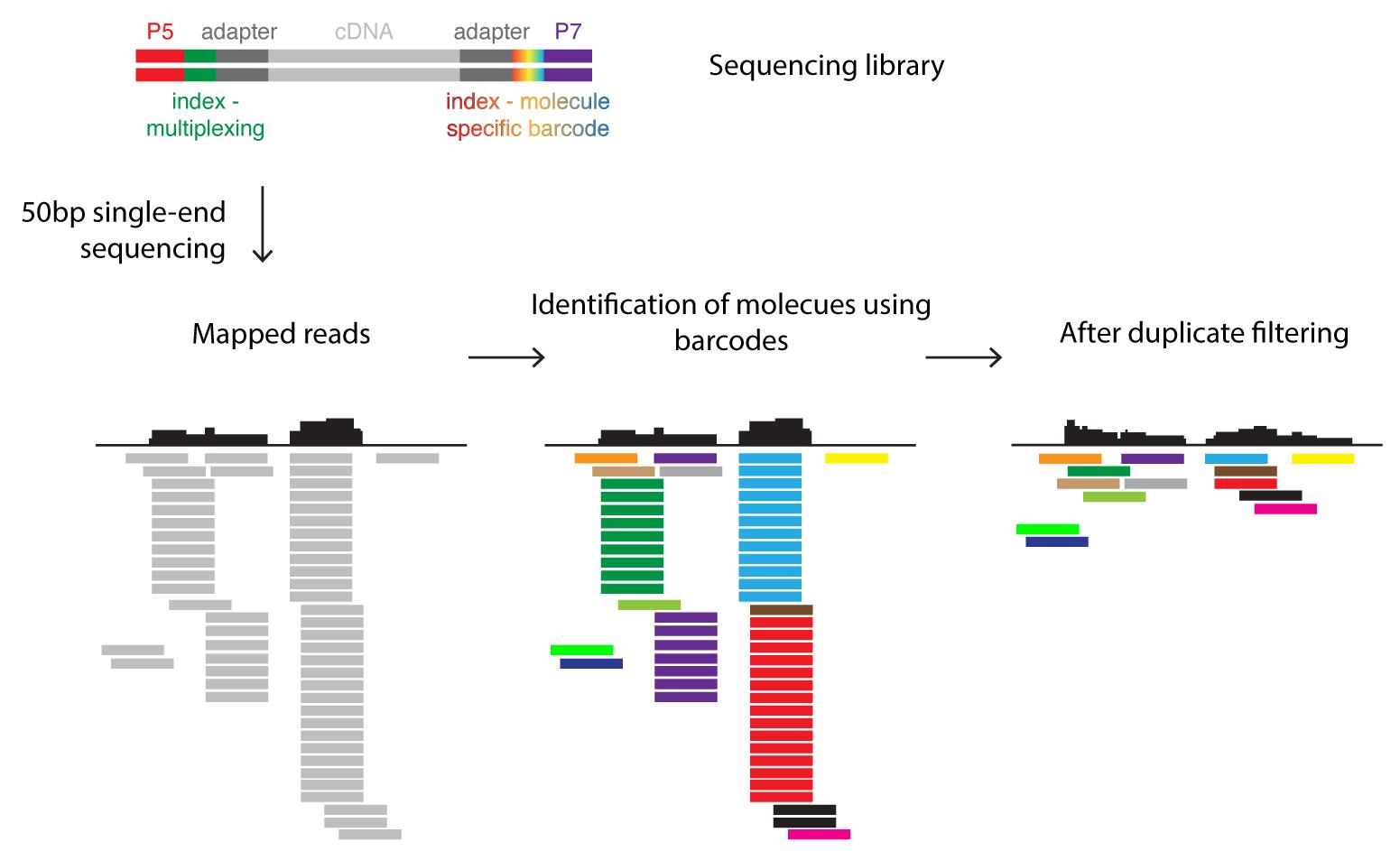

   Figure 3. Barcoding strategy for data analysis. The sequencing library (see also Figure 1) contains DNA molecules with sequences allowing the attachment to the flow cell (P5/P7) and indices. The sample-specific index (green) can be used to pool several sequence libraries for a single sequencing run (multiplexing). The molecule-specific barcode is unique for each fragmented, double-stranded DNA molecule. Sequencing reads are mapped to the reference genome. The molecule-specific barcodes identify PCR amplicons derived from the same DNA molecule and thus allow the correction of such PCR bias by filtering duplicates.




2. Step by step procedure of the RNA-seq data analysis

   1. Demultiplex reads based on “multiplex BC”:

      1. Create a FASTQ file for each multiplex BC (exact match or edit distance ≤ 2 based)
      2. Each sequence ID must have following structure: “@readID:multiplexBC:indexMolecule”

   2. Remove reads of ribosomal RNA origin:

      1. Align against rRNA sequences derived from RefSeq (BWA, http://bio-bwa.sourceforge.net/bwa.shtml)
      2. Retrieve un-aligned reads (samtools; http://www.htslib.org/doc/samtools.html)
      3. Convert un-aligned reads to FASTQ format

   3. Align reads to the genome with TopHat (https://ccb.jhu.edu/software/tophat/manual.shtml):

      1. Use the Drosophila melanogaster genome (FlyBase)
      2. Use min/max intron range of 20-150,000 bp (FlyBase statistics)
      3. Enable microexon-search

      4. Provide a gene model as GTF (FlyBase)

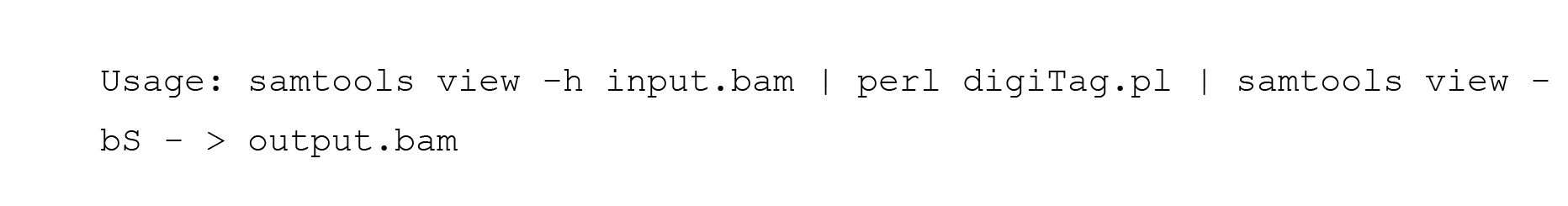

   4. Use our provided custom perl script (digiTag.pl; https://gitlab.com/ii-bioinfo-thomas/ii-digitag) to mark reads arising from duplication events. The index molecule (barcode) must be stored in ID (see 1b). In short the script does following:




      1. The different barcodes are counted at each genomic position.
      2. The diversity of barcodes at each position is examined.

         1. Barcodes are sorted descending by their count.
         2. If several barcodes have the same occurrence, they are further sorted alphanumerically.
         3. Reads sharing the same barcode, are sorted by the average PHRED quality.
         4. If several reads have the same quality, they are further sorted alphanumerically.
         5. The barcodes are cycled through by their counts.
         6. Within one barcode, the read with the highest average PHRED quality is the unique correct read and all subsequent reads with the same barcode are marked as duplicates.
         7. All reads which have barcodes with one mismatch difference compared the pool of valid read barcodes are also marked as duplicates.

   5. Count with HTSeq (https://htseq.readthedocs.io/en/latest/count.html):

      1. Set stranded to “no”
      2. Set mode to “intersection-nonempty”
      3. use a GTF (FlyBase) without snRNA, rRNA, tRNA, snoRNA and pseudogenes

   6. Perform standard differential expression analysis with DESeq2 (https://bioconductor.org/packages/release/bioc/vignettes/DESeq2/inst/doc/DESeq2.html)



      Further documentation of the analysis can be found in the method section of Landskron et al. (2018) and all data are available on this link: https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE87085.

Notes

1. Always use 1.5 ml DNA LoBind tube along the protocol to limit DNA loss.

2. Always use Nuclease-free Water to prepare ethanol solutions.
