Liposomal Clodronate-mediated Macrophage Depletion in the Zebrafish Model

Materials and Reagents

1. 1.5 ml microfuge tubes (Eppendorf, SafeLock, catalog number: 00 30120086 )

2. Polystyrene Petri dish (VWR, catalog number: 25384-342 )

3. Thin wall borosilicate glass capillaries, 4 inches, OD 1.5 mm with filament (World Precision Instruments, catalog number: TW150F-4 )

4. Glass bottle

5. 7.5 ml transfer pipettes (VWR, catalog number: 414004-005 )

6. Low melt agarose (Fisher Scientific, IBI Scientific, catalog number: 50-550-455 ), store at room temperature

7. PTU (N-Phenylthiourea) (Sigma-Aldrich, catalog number: P7629 ), store at room temperature； made into PTU solution, store at -20 °C

8. Clodronate Liposomes (Liposoma, catalog number: C41J0781 , https://clodronateliposomes.com), store at 4-7 °C

9. Control Liposomes (Liposoma, catalog number: B#P37J0718 , https://clodronateliposomes.com), store at 4-7 °C

10. Dextran, Alexa Fluor^TM 568: 10,000 MW (Invitrogen, catalog number: D22912 ), store in freezer and protect from light

11. Neutral Red Dye (Sigma-Aldrich, catalog number: N4638 ), store at room temperature

12. Tricaine (3-amino benzoic acidethylester) (Sigma-Aldrich, catalog number: A-5040 ) made into tricaine solution, store at -20 °C

13. 50× PTU stock (see Recipes)

14. 25× Tricaine stock solution (100 ml) (see Recipes)

15. 3% Methyl cellulose (see Recipes)

16. 1,000× neutral red solution (see Recipes)

17. 1.5% low melt agarose (see Recipes)

Equipment

1. Stereomicroscope with LED illuminated base and articulating mirror (World Precision Instruments, model: 504941 , PZMIII-MI)

2. Fluorescent stereomicroscope fully apochromatic corrected with 16:5:1 zoom optics (Leica, model: M165 MC )

3. Manual micromanipulator (World Precision Instruments, catalog number: M3301 )

4. PicoNozzle Kit v2 (World Precision Instruments, catalog number: 5430-ALL )

5. Pneumatic PicoPump PV 820 (World Precision Instruments, catalog number: SYS-PV820 )

6. Incubator (Benchmark Scientific, model: H2200-H )

7. Microelectrode Puller (World Precision Instruments, catalog number: PUL-1000 )

8. Microwave

Software

1. Fiji (Schindelin et al., 2012, https://fiji.sc/)

Procedure

1. Larval zebrafish growth

   1. Incubate zebrafish embryos in fish water in a 28.5 °C incubator.

   2. Conduct a daily water change, and starting at 24 h post-fertilization (hpf), the fish water is also supplemented with PTU at a final concentration of 0.003% to inhibit pigmentation.

      PTU (N-Phenylthiourea) inhibits melanogenesis (pigmentation) by blocking all tyrosinase-dependent steps in the melanin pathway (Karlsson et al., 2001).

   3. Check the health status of the zebrafish larvae before injection. By 3 dpf healthy larvae will have a consistent rhythmic heartbeat with apparent blood flow, intermittent bursts of movement, and a straight body.




2. Prepare liposome mix with fluorescent dextran

   1. Use clodronate liposomes and control liposomes directly at 5 mg/ml at the concentration they were delivered in liquid form from the manufacturer. We recommend making aliquots of the liposomes for storage at 4 °C to eliminate possible contamination from multiple usage; we use the aliquots within 12 months of storage. Supplement the liposome with Alexa 568 labeled dextran at 1:100 dilution of a 5 ng/nl stock for visualization of the injection.

      For example: add 0.5 μl of a 1:10 dilution of Alexa 568 labeled dextran at 5 ng/nl to 4.5 μl of clodronate liposomes at its original concentration of 5 mg/ml.

   2. Vortex to mix until a homogenous mixture for about 30-60 s.




3. Needle and microinjector set-up

   Review the manufacturer’s recommendations and instructions for the micro-needle puller and the microinjector before operating.

   1. Use a micropipette needle puller to make a fine microinjection needle (refer to Table 1 and Figure 1).

      Microelectrode puller program (see Table 1)




      Table 1. 4-step protocol for glass capillary tube pulling

      Step	Heat	Force	Distance	Delay
      1	690	260	7.3	0
      2	500	240	0.5	4
      3	500	230	0.5	10
      4	380	240	0.5	20

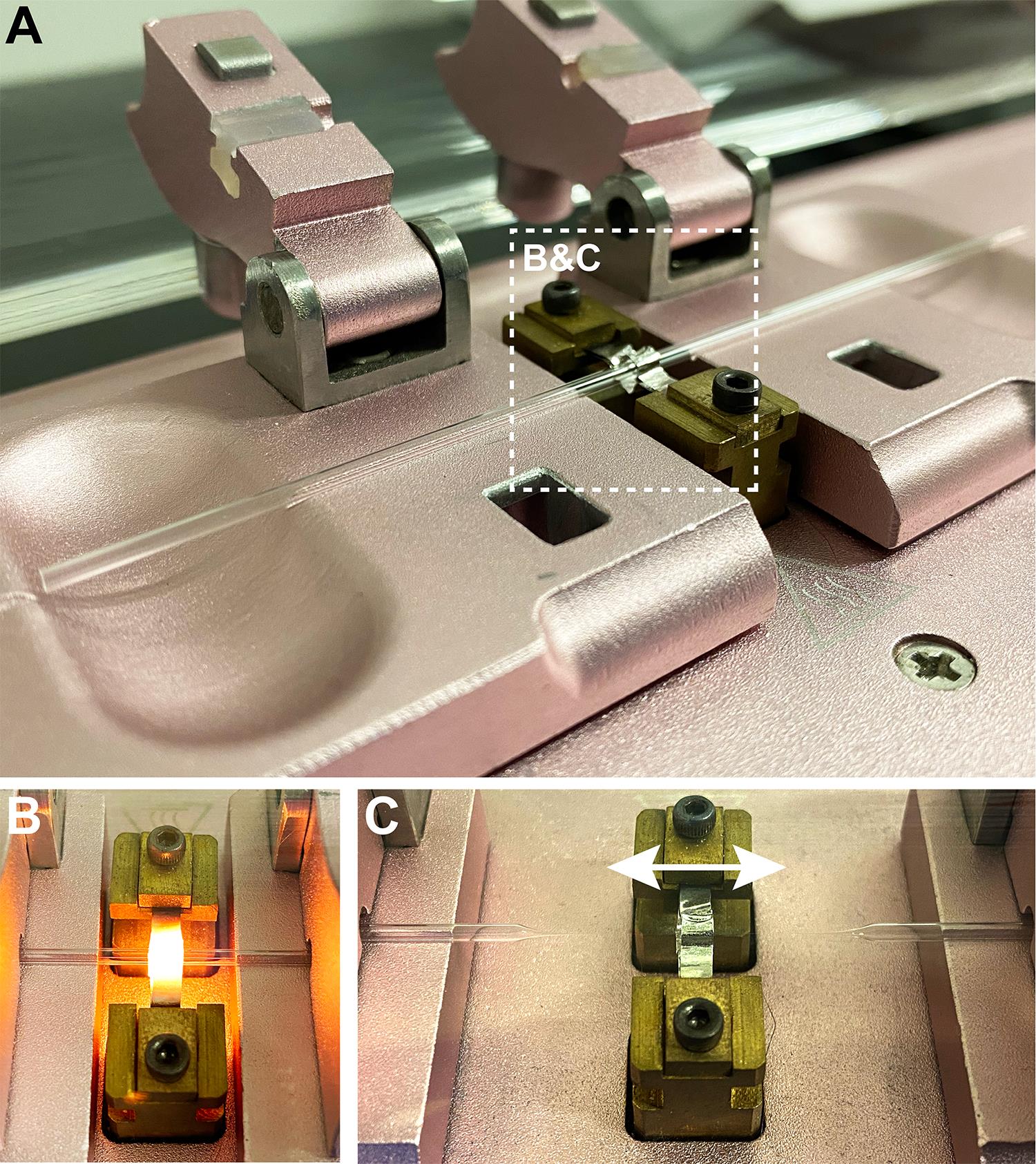

      Figure 1. Pulling microinjection needle. A. Capillary tube loaded into micro-needle puller. B. Magnified view of heated filament surrounding glass capillary. C. Creation of 2 microinjection needles from pulling (double-sided white arrow).




   2. Load 3 μl of injection material into the wide end of the microcapillary glass tube.

   3. Shake the capillary tube to bring the injection material to the tip of the needle and to remove any air bubbles.

   4. Turn on the air source and the microinjector, and transfer the needle into the microinjector.

   5. Break the tip of the microinjection needle using forceps to an extent that allows the injection materials to release consistently and minimize the needle puncture on the target tissue.

   6. Adjust the pressure on the pneumatic pump and the location of microinjection syringe pump to ensure consistent 0.5 nl per foot-pedal kick of injection so each injection consists of two kicks per larval fish for a total of 1 nl.

      Size of each injection kick can be estimated by injecting into air which creates a spherical drop at the needle tip. The diameter of the liquid sphere of about 100 μm is estimated using a stage micrometer to give 0.5 nl volume.

   7. Adjust the micromanipulator so that the needle can reach the center of the stage and touch the base so that the needle can reach any mounted larvae in your field of view under microscope.




4. Mounting zebrafish for microinjections

   1. Use a microwave to melt 1.5% low-melt agarose (for a short time, 10-20 s). See Recipes for low-melt agarose preparation.

   2. Use a plastic transfer pipette to transfer multiple larvae at 3 dpf to the center of a 10 cm Petri dish lid. Many larvae can be transferred at once upwards of 10-15 larvae.

   3. Remove as much fish water as possible to leave only minimal water around fish as to not dehydrate them, then slowly pipette in lukewarm low melt agarose and gently swirl the larvae to mix them into the agarose (or by pipetting them up and down 1-2 times).

      1. The agarose will be very hot immediately after heating. To prevent scalding and killing the larvae, wait until the agarose is not hot to the touch, but still warm and fluid. The low-melt agarose will remain fluid at 37 °C and set rapidly below 25 °C. So you want to aim to use the agarose at the temperature between 30 °C and 40 °C. You can also keep the agarose on a heat block at 60 °C so it remains in solution for a longer period of time as you work on mounting the larvae. You can expedite the cooling process by pipetting hot agarose up and down on a clean surface (such as in another dish).

      2. The goal is to have the larvae embedded in a thin layer of agarose so that when it comes to using the fine glass needle for injection, the needle does not need to penetrate through much gel to reach your desired tissue target (see Figure 2). Too much agarose will make it hard to direct the needle to your target site without having it bend or swerve in the agarose.

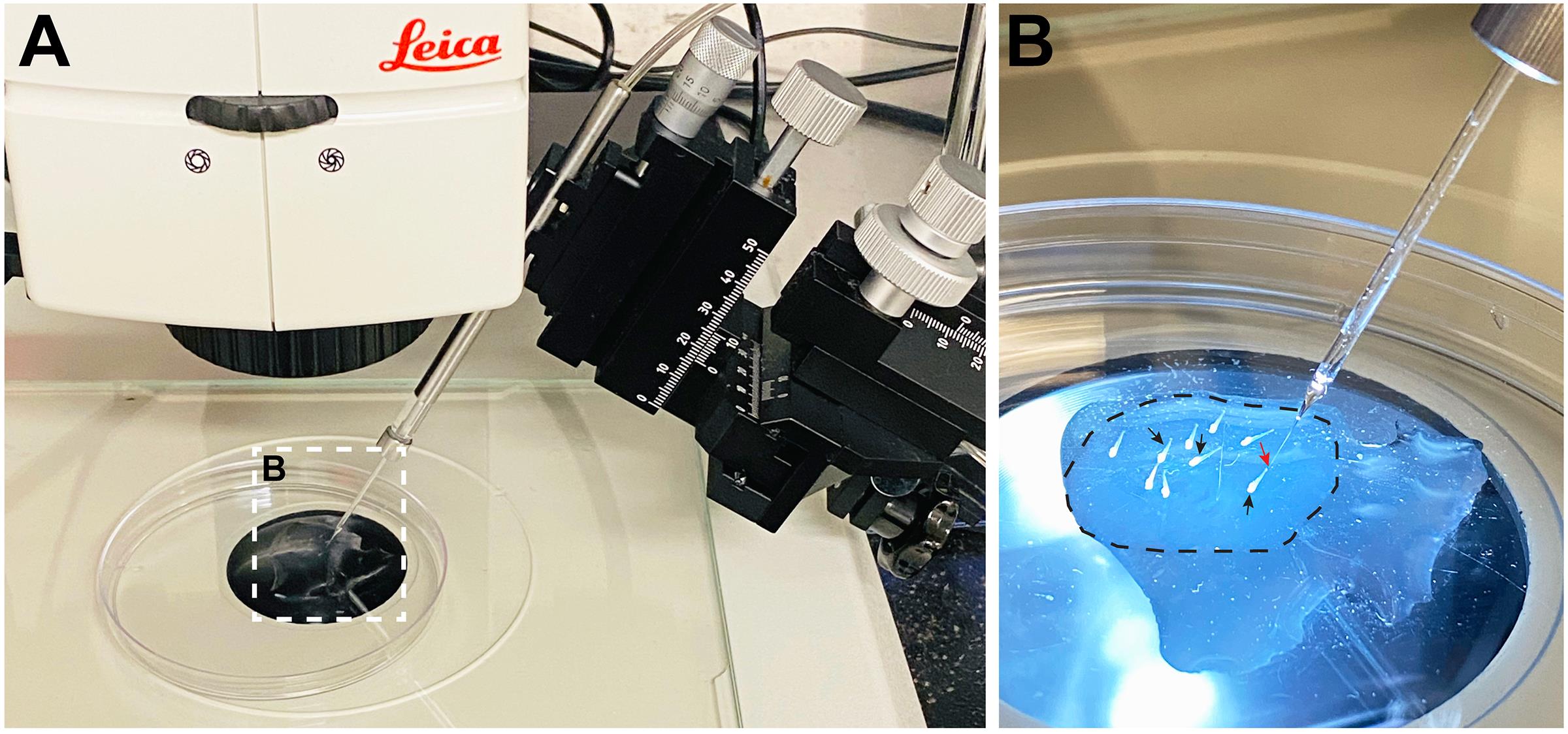

      Figure 2. Set-up of zebrafish larval microinjections. A. Mounted larvae are placed under a fluorescent stereomicroscope adjacent to a microinjection needle attached to a micro-manipulator. B. Higher magnification of mounted larvae. Dotted circle shows solidified thin layer of low-melt agarose covered with a small pool of system water supplemented with PTU. Black arrows point to larvae. Red arrow points to tip of needle (Note: This arrow is not pointing to the injection site.)




   4. The most time-sensitive step is in orienting all the zebrafish larvae quickly in the agarose before it begins to re-solidify. You can expect to have less than 1-2 min for this step. Use fine forceps to quickly orient each one on their sides, but without concern of the exact orientation or body alignment, only that the tail region containing the caudal vein plexus is accessible to your needle. Take caution to not poke the larvae to cause injury but to use the agarose around the larvae to move them.

   5. Wait for agarose around the larvae to cool down and solidify before starting injections.

   6. Add a small amount of fish system water to cover the agarose to prevent dehydration and keep the larvae healthy during the operation (see Figure 2).




5. Intravenous microinjections

   1. Use the foot pedal to inject 1 nl of clodronate liposomes or control liposomes into caudal vein plexus, which is located in the tail tissue right past the yolk extension (see Graphical abstract).

   2. Validate each injection by seeing an immediate distribution of the injected fluorescent dextran mix into the heart and subsequent circulation throughout the body vasculature using a fluorescent stereomicroscope. Any larvae after injection that do not show the correct distribution of the fluorescent marker in the body vasculature is removed from the dish using forceps.

   3. Gently recover the injected fish from the agarose into fresh fish water supplemented with 0.003% PTU and transfer them back into the 28.5 °C incubator.

      Use the side of the forceps to create a break in the agarose beginning underneath the head and dragging the forceps along the body until the tip of the tail is reached. Larvae should be able to squirm out easily and swim into the system water surrounding the agarose. Pipette released larval zebrafish into the dish with fresh fish water.

   4. After microinjection, monitor all the fish for normal health and behavior. Remove any sickly or abnormal fish, and only continue processing the healthy and normal larvae.




6. Neutral red staining

   1. In a Petri dish, stain a subset of your injected larvae at 48 hpi (hours post injection) with neutral red at 2.5 μg/ml in fish water supplemented with 0.003% PTU at room temperature for 45 min to 1 h (see Figure 3A).

   2. Remove the majority of the neutral red supplemented fish water by exchanging it for fresh new fish water supplemented with PTU (see Figure 3B).

   3. Leave the larvae in incubator for another 2-3 h before analyzing under a stereomicroscope.

   4. Before analyzing, anesthetize larvae with tricaine at 0.5× strength, which the larvae can stay in for up to 45 min with the ability to fully recover back to normal and moving again. For the anesthetics to be working, larvae should not be moving so you can use them for your analysis.

      Note: Please follow your institutional guidelines on the appropriate protocol for anesthetizing zebrafish.

   5. Mount larvae in 3% methyl cellulose to position the larvae for analyzing and imaging under a stereomicroscope with a color camera. The larvae should be mounted brain side up to image the microglia under an upright stereomicroscope (see Figure 3C-3E).

      Notes:

      1. You can mount larvae on a dish or any flat platform to visualize them under a stereoscope.

      2. Because methyl cellulose is highly viscous and these larvae were temporarily anesthetized, they remain sufficiently still for quick imaging without further anesthesia in only methyl cellulose for at least up to 10 min.

      3. Depending on the endpoint of the experiment, these larvae can be directly processed after imaging for genotyping, or recovered by washing them 1-2 times in clean fish water to remove the methyl cellulose at which point they can return to their growing chamber (an incubator) or fixed for further analysis. Fish larvae should remain well and alive during this entire period up to the endpoint processing.





   Figure 3. Neutral red analysis. A. Color of fish water after addition of neutral red. B. Color of fish and water after removal of neutral red. C. Full body image of control uninjected 4 dpf larvae after neutral red staining. D and E. Lateral (D) and dorsal (E) view of neutral red staining. C-E. Larvae imaged in 3% methyl cellulose. Black arrows point to individual microglial cells.

Data analysis

The intravenous administration of clodronate liposomes offer the ability to deplete macrophages throughout the body, including microglia and peripheral macrophages, without the maintenance of a transgenic line. Analyze the efficiency of clodronate-mediated macrophage depletion by comparing the number of microglia in the brains of liposomal clodronate injected group with the control liposomal vehicle or control uninjected group using the neutral red vital dye assay at 48 hpi (see Figure 4–Figure Supplement 2 in Yang et al., 2020).

Recipes

1. 50× PTU stock (1 L)

   1. Dissolve 1.5 g N-Phenylthiourea (PTU) in 1 L of distilled water by stirring overnight at room temperature.

   2. Aliquot and store concentrated stock at -20 °C.

   3. To inhibit pigmentation in developing embryos，use at a 1× concentration in fish water and replace daily.

   4. 1× is 0.003% [weight (g) by volume (per 100 ml)] in fish water.

2. 25× Tricaine stock solution (100 ml)

   Add 400 mg of Tricaine powder (3-amino benzoic acid ethyl ester) to 100 ml of distilled water. Store concentrated stock at -20 °C. To use tricaine as an anesthetic，use at a 0.5-1.0× concentration.

3. 3% Methyl cellulose

   Note: You will need 3 g of methyl cellulose powder in 100 ml of distilled water.

   1. To dissolve methyl cellulose powder in water, bring half of the distilled water to 60 °C. The remaining volume of water should be stored at 4 °C and left to cool for 30 min.

   2. Add 3 g of methyl cellulose powder to boiling water and stir. The mixture will become extremely viscous quickly.

   3. Remove the solution from the heat as soon as stirring becomes difficult.

   4. Add the chilled water and continue to stir for 30 s.

   5. To fully dissolve particles and remove bubbles the solution must be placed at -20 °C overnight. To prevent glass from breaking, gradually lower the temperature by placing glass at 4 °C for 1-2 h before placing at -20 °C overnight.

4. 1,000× neutral red dye solution

   Dissolve neutral red powder in distilled water at a concentration of 2.5 mg/ml for a 1,000× stock. For live staining of microglia in zebrafish, use neutral red at 1× strength.

5. 1.5% low melt agarose

   1. Dissolve 1.5 g of low melt agarose in 100 ml distilled water using the microwave for less than 30 s.

   2. Monitor the heating process as low melt agarose can easily overheat and bubble over.

   3. Once this solution is made, it can be stored in a glass bottle with a lid at room temperature and be repeatedly re-used by re-melting the agarose in the microwave.

Acknowledgments

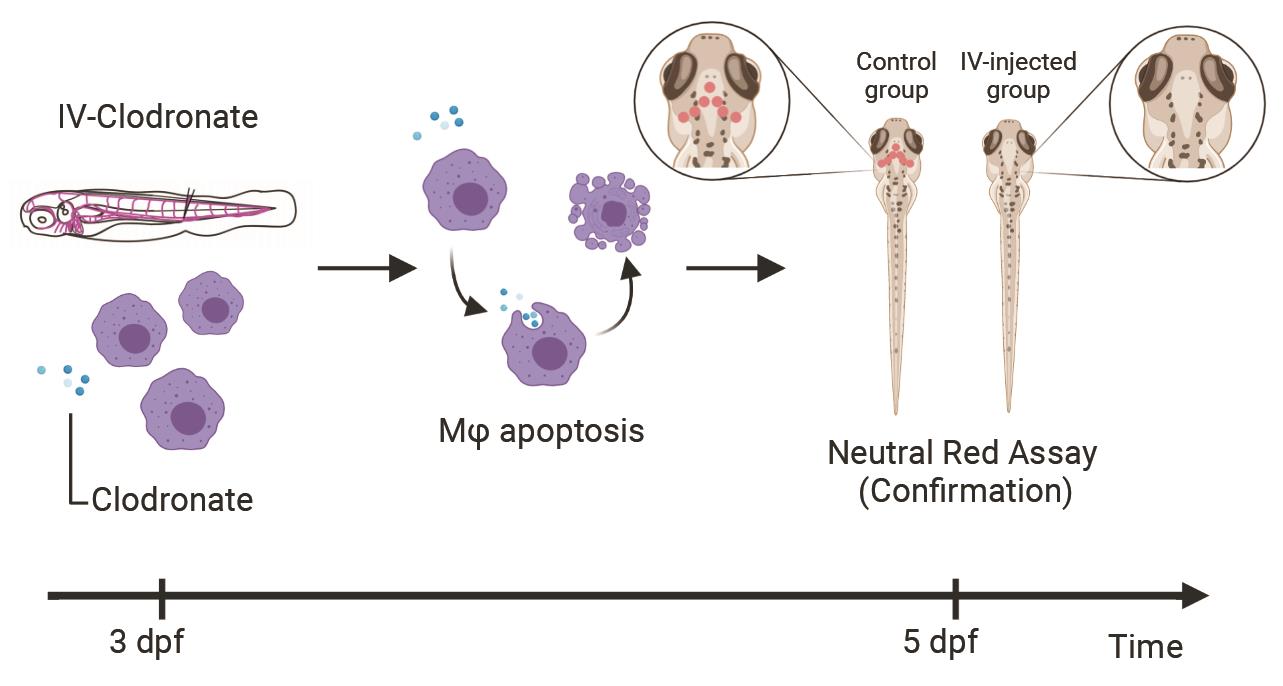

The graphical abstract was created with BioRender.com. This protocol accompanies the publication (Yang et al., 2020). The work was funded by NIH NIGMS grant 1R35GM124719 to C.E.S.

Competing interests

The authors declare no competing interests.

Ethics

Animal experimentation: This study was performed in strict accordance with the approved institutional animal care and use committee (IACUC) protocols (#16-160 and #19-132) of the UNC Chapel Hill.
